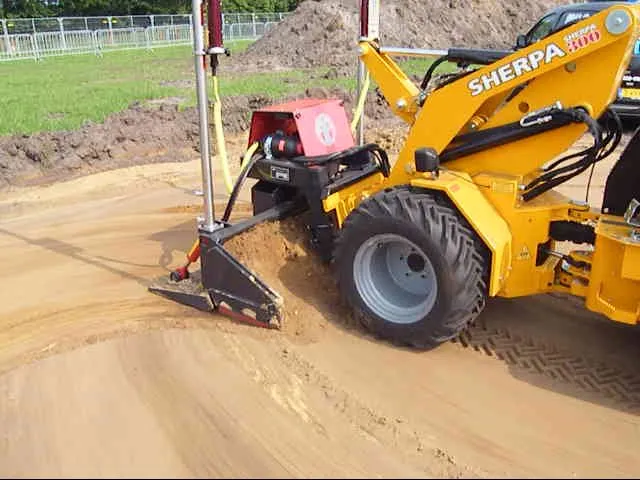

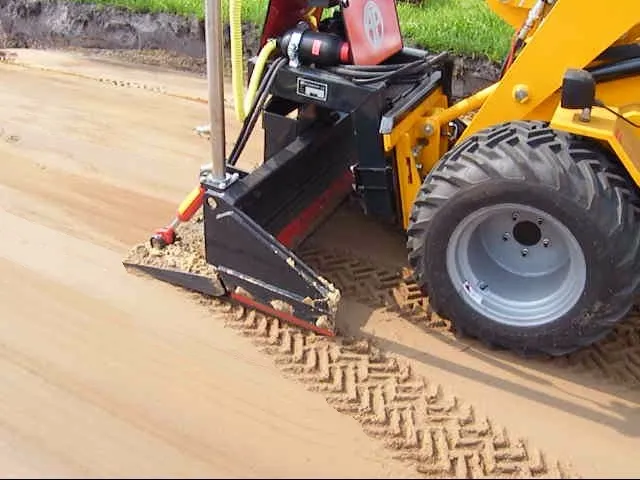

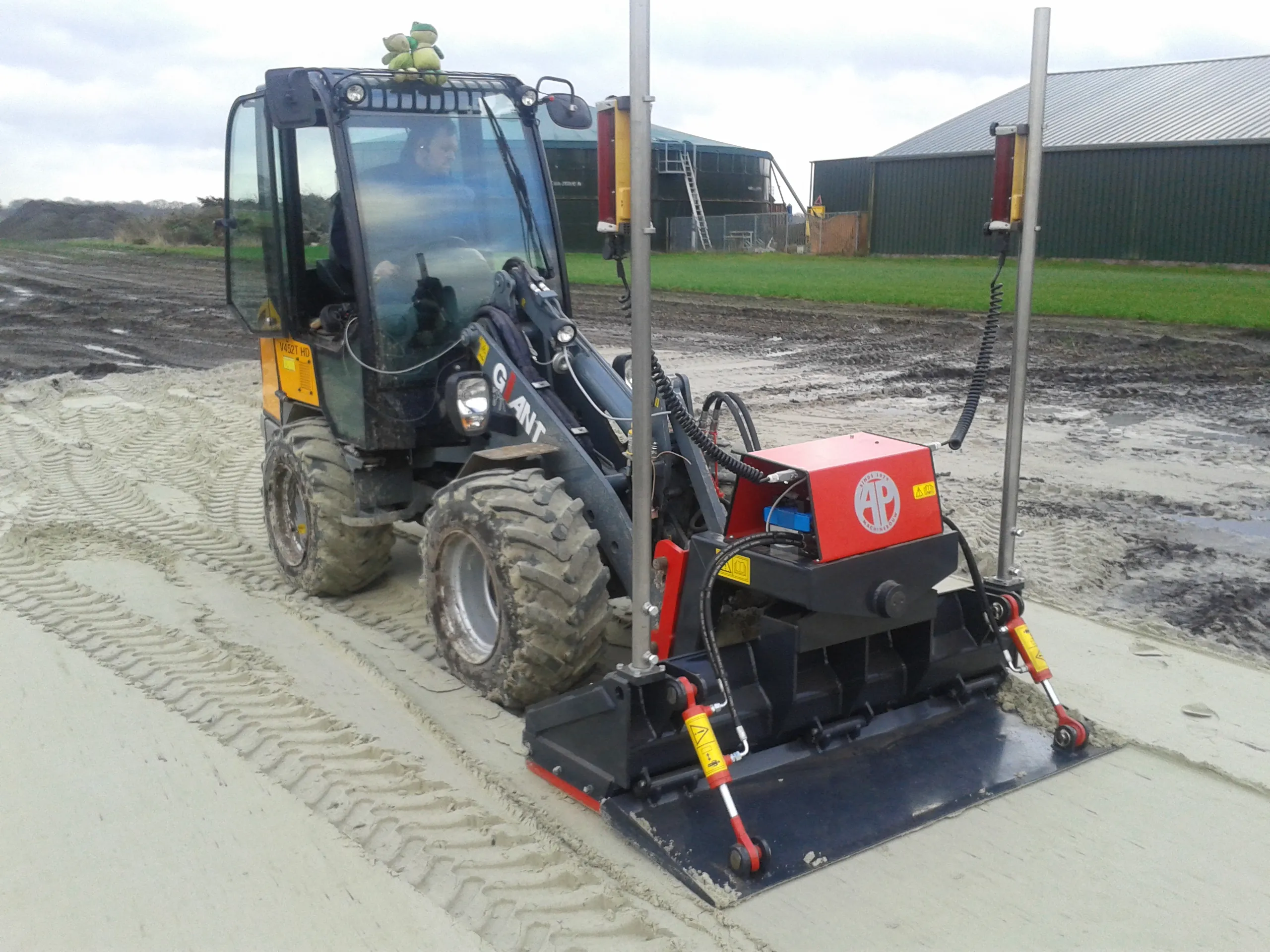

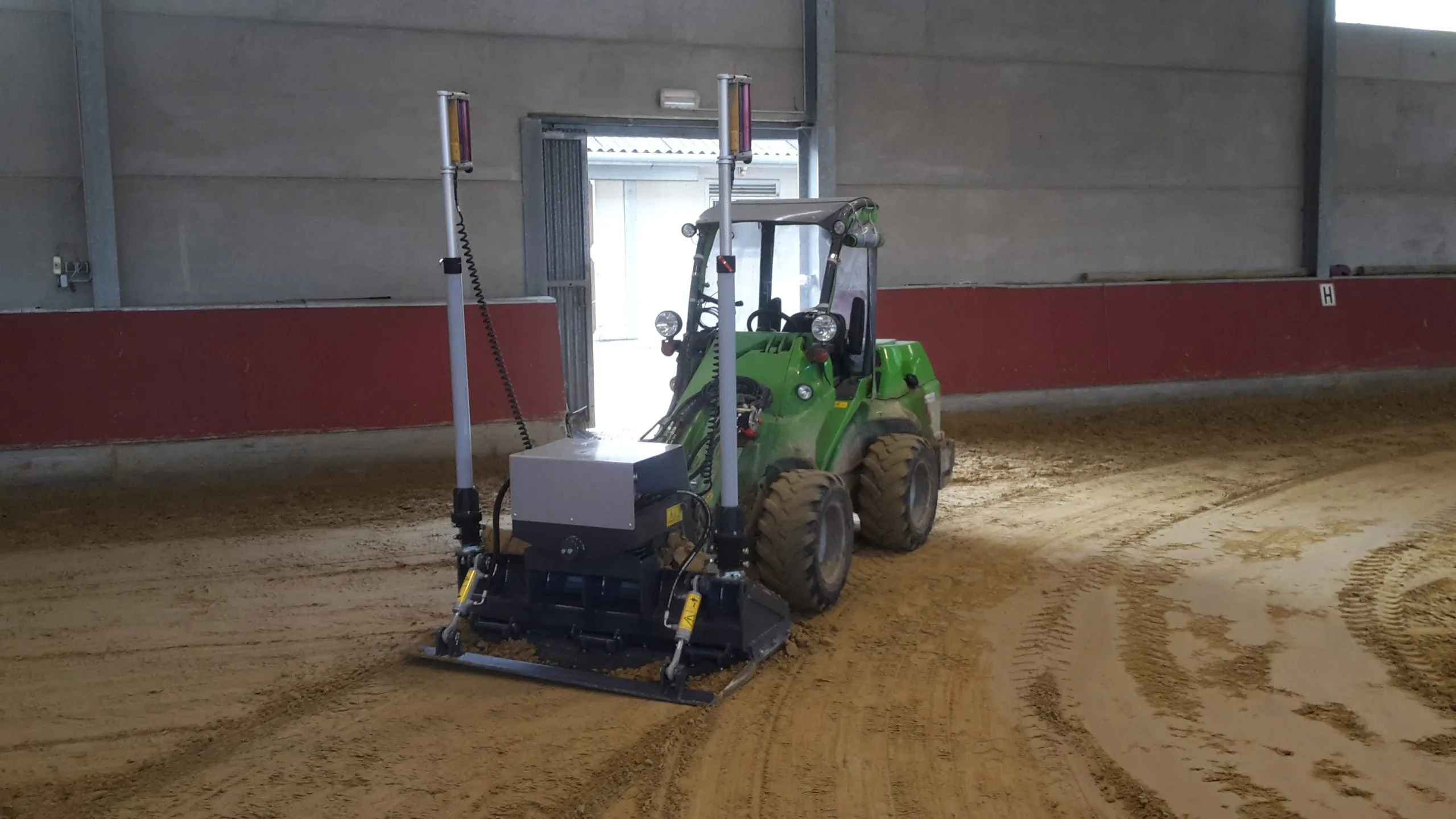

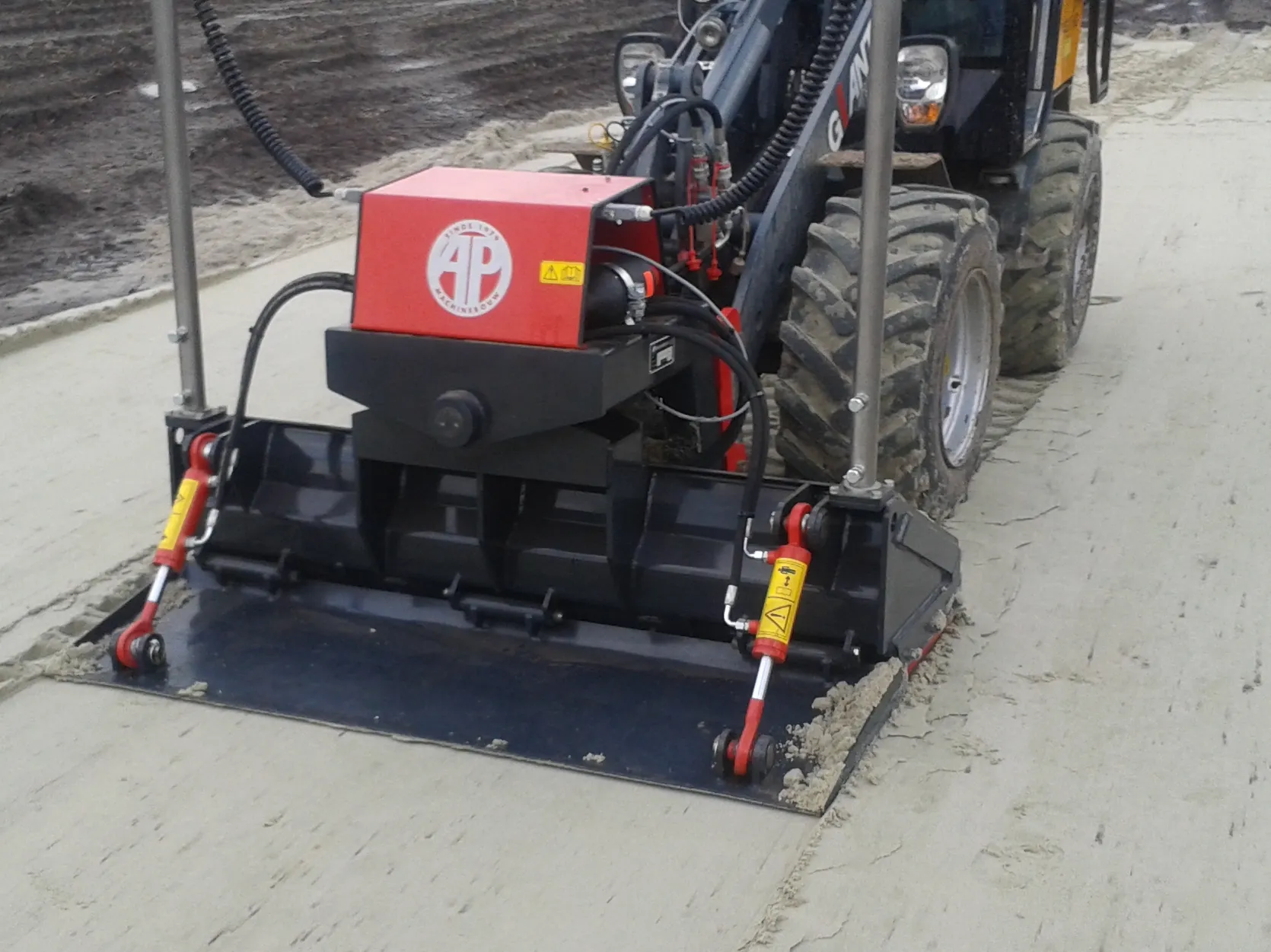

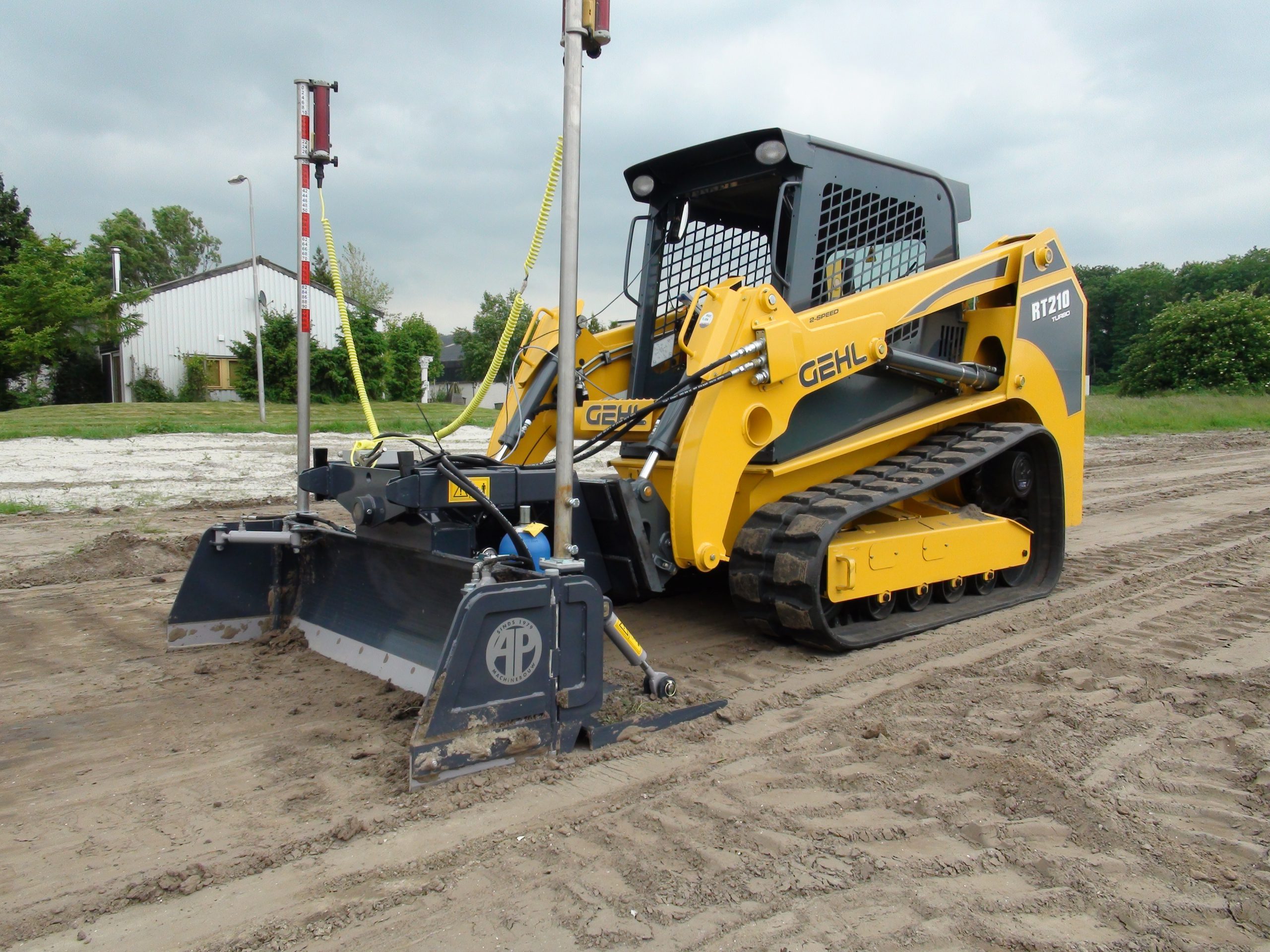

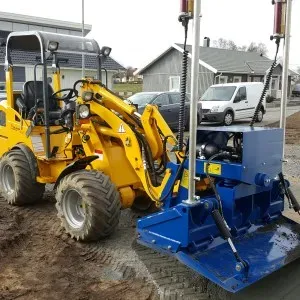

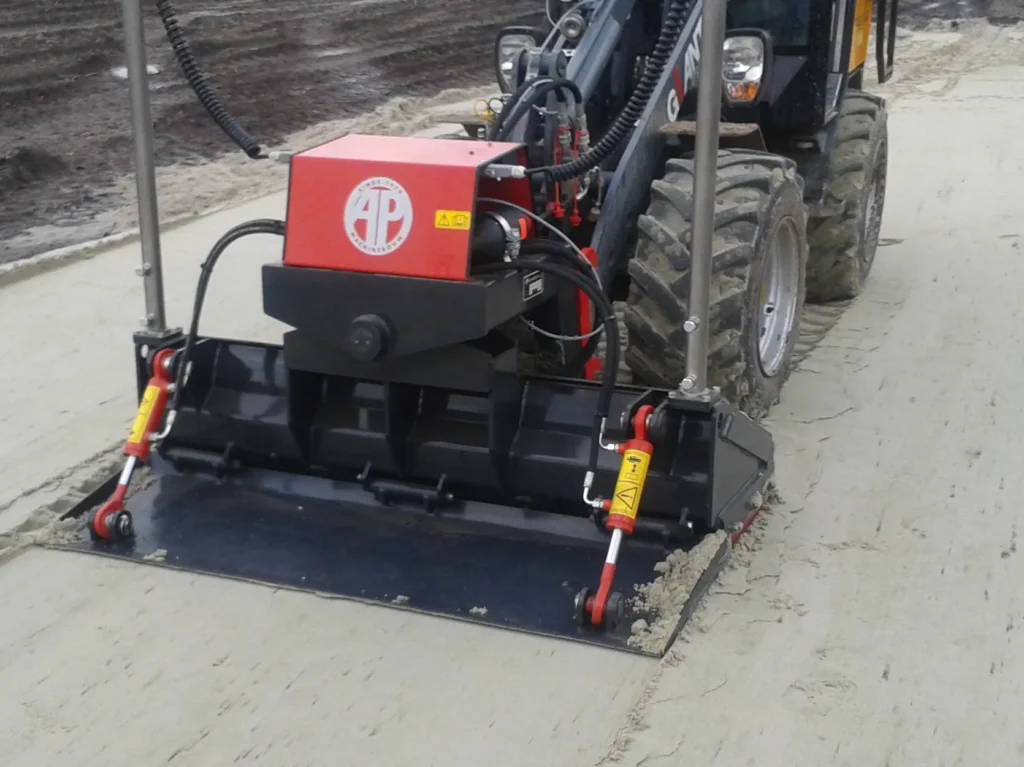

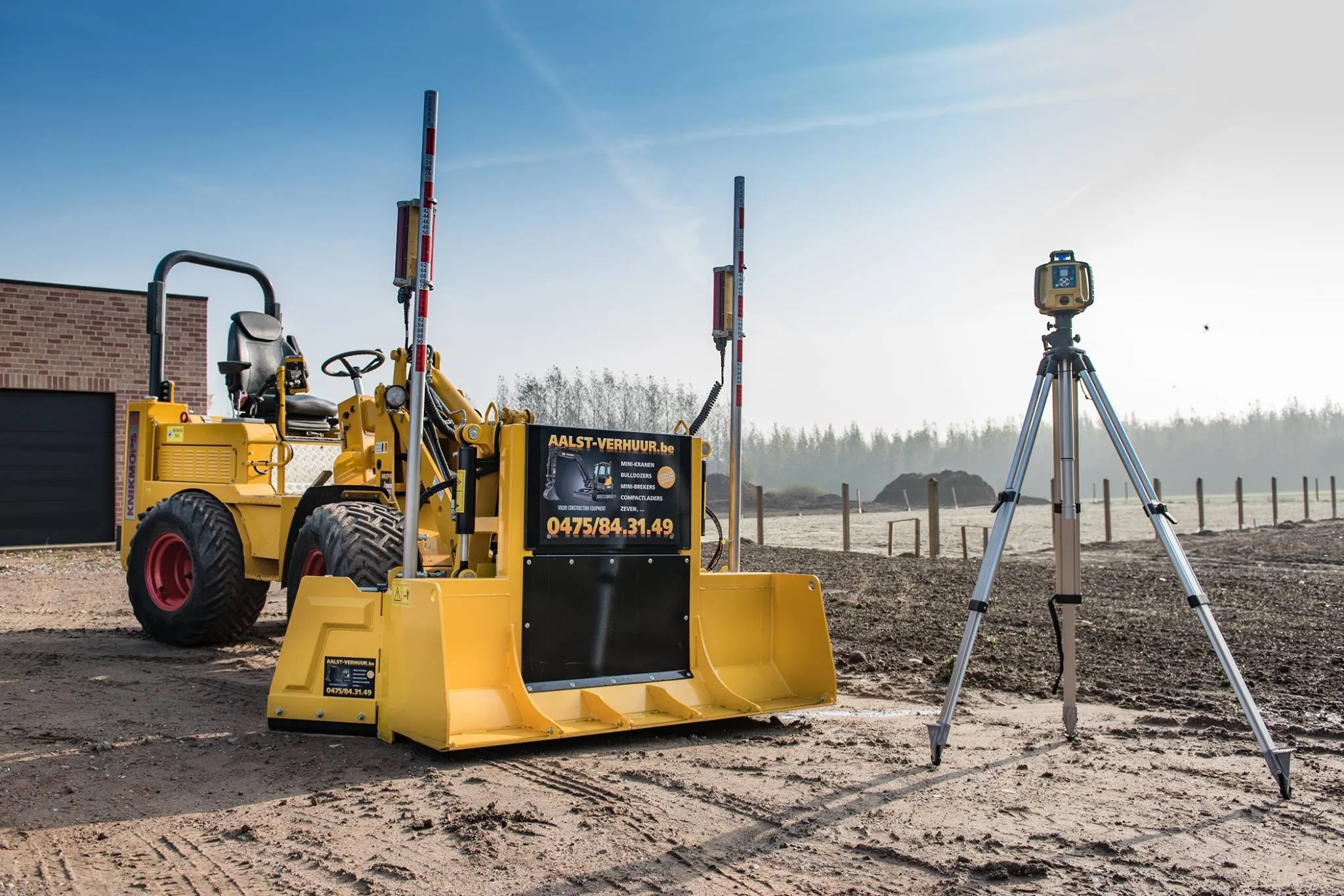

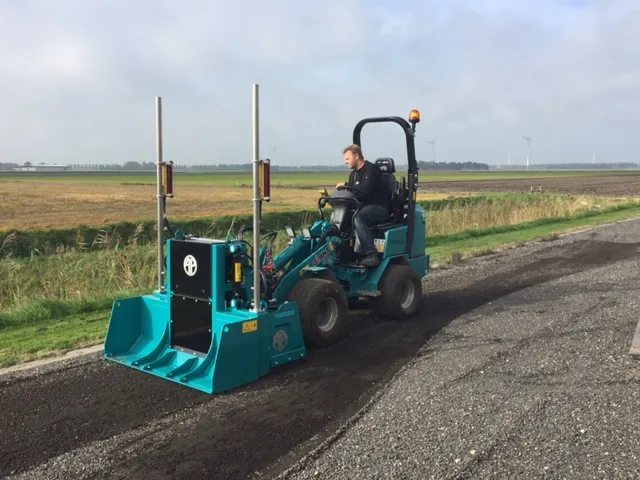

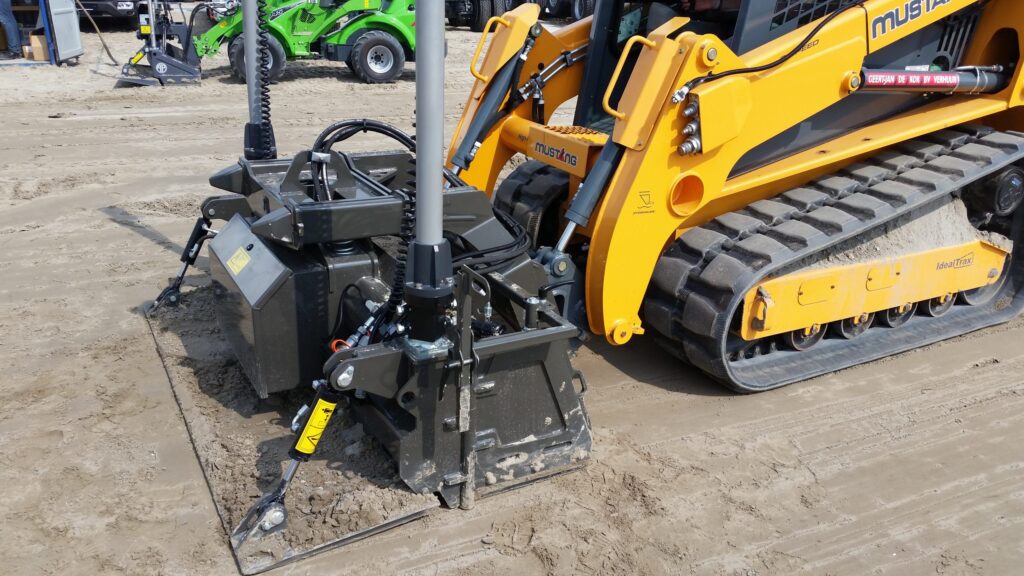

The AP Basic leveller is a basic leveller to combine with smaller wheel and skids-steer loaders. This compact leveller is available in working widths from 140 cm to 220 cm. The machine is equipped with a torsion plate on the front that determines the height. Driving backwards the machine levels the subsoil at the desired height or slope.

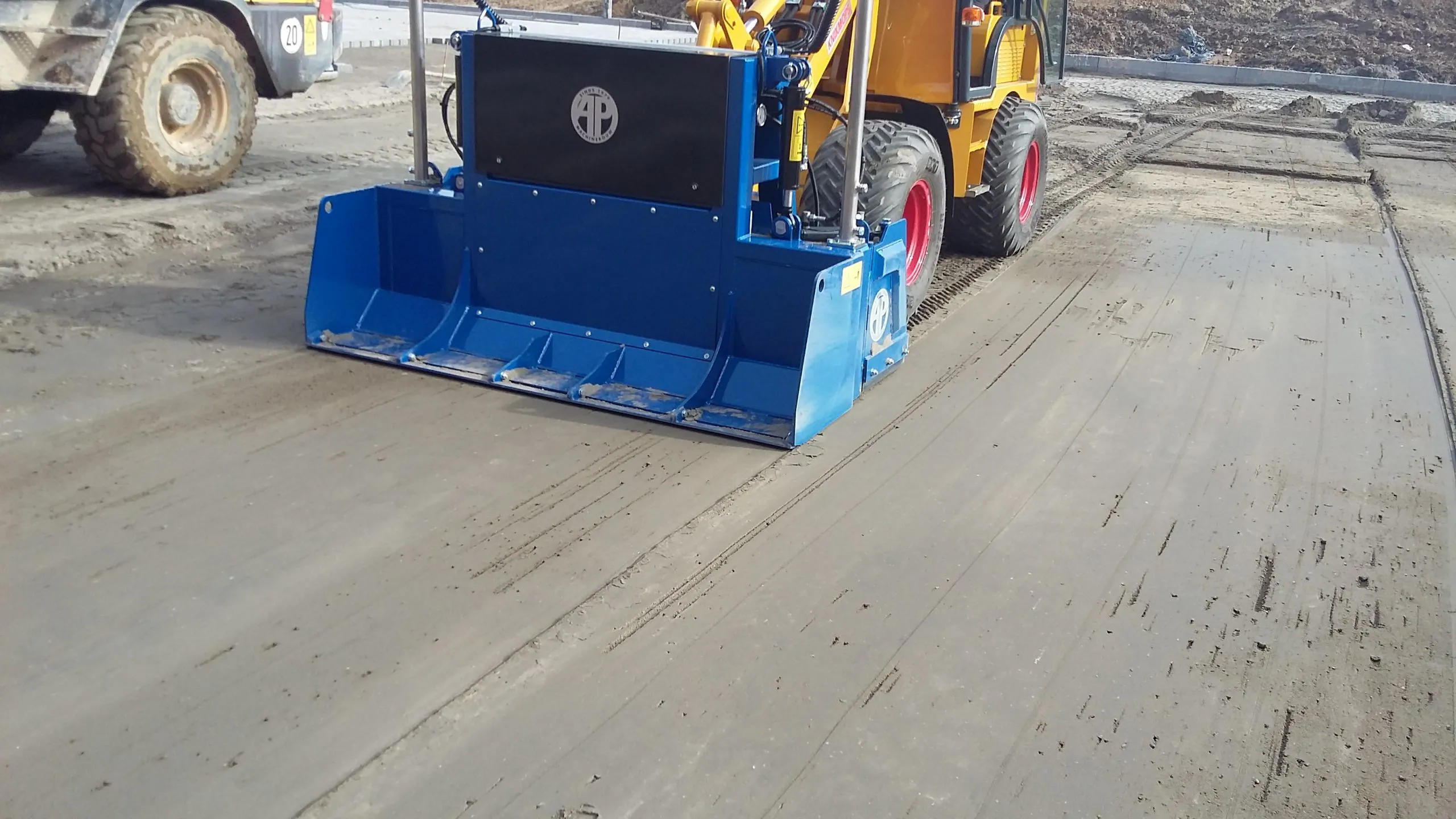

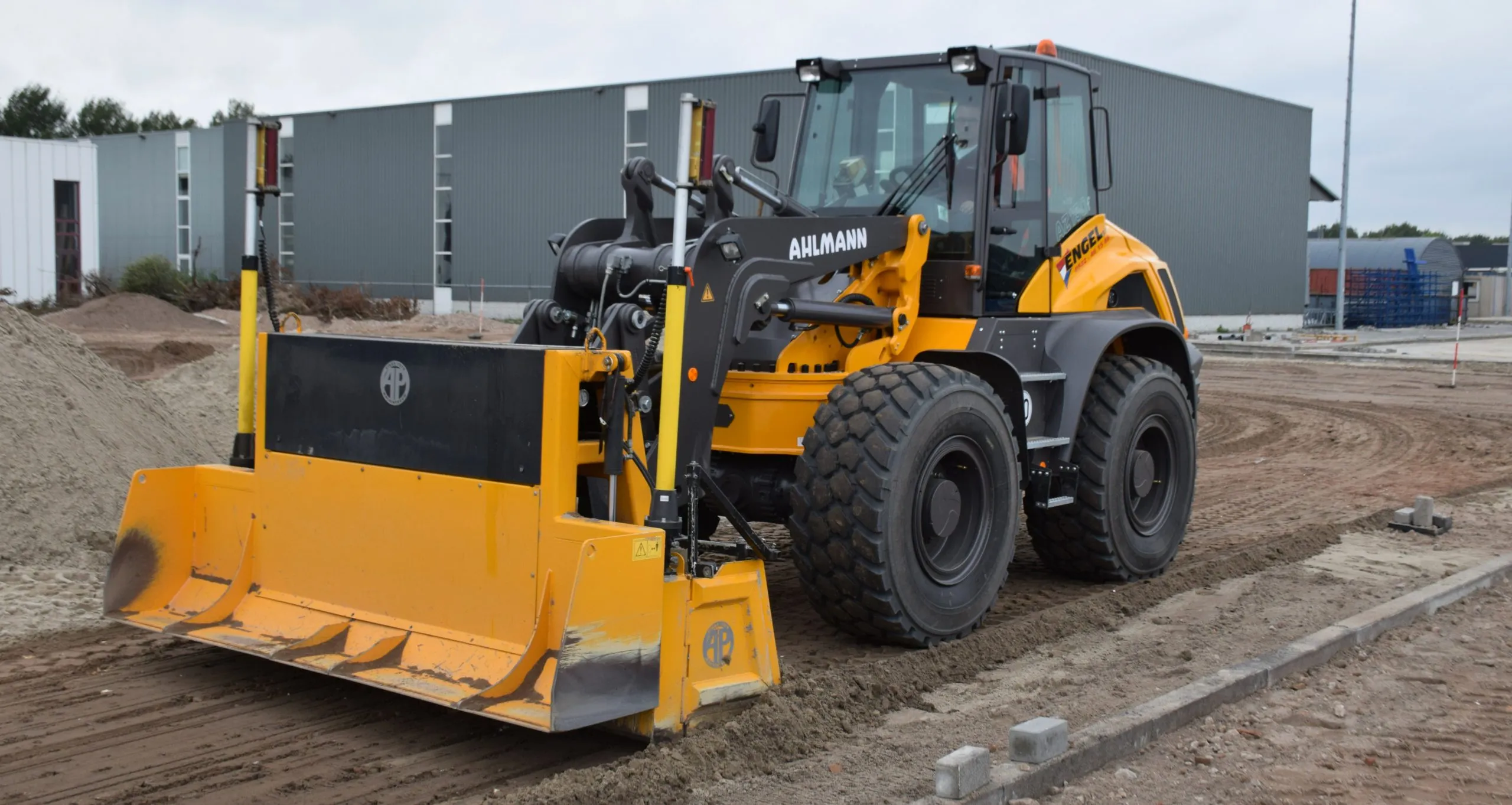

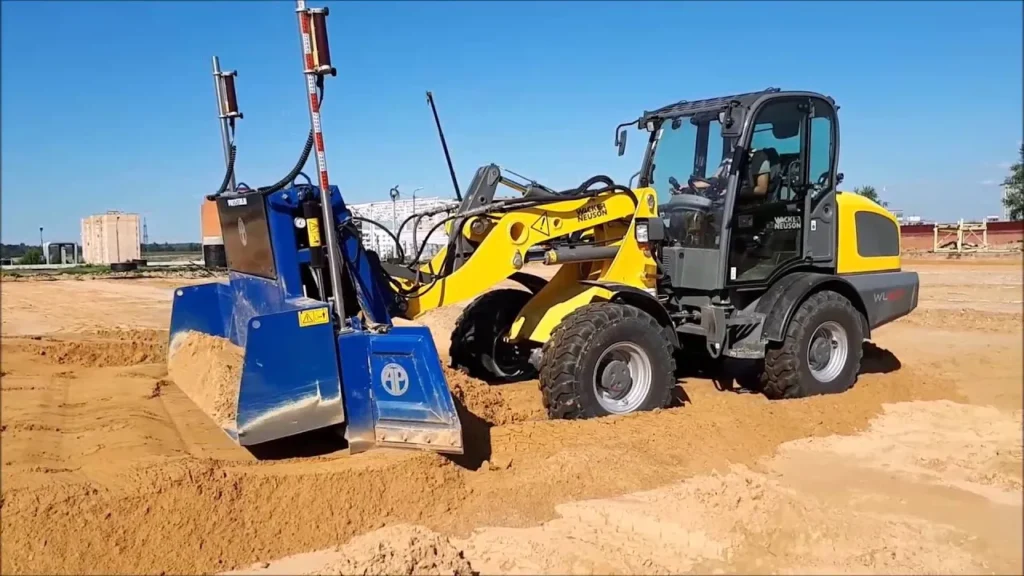

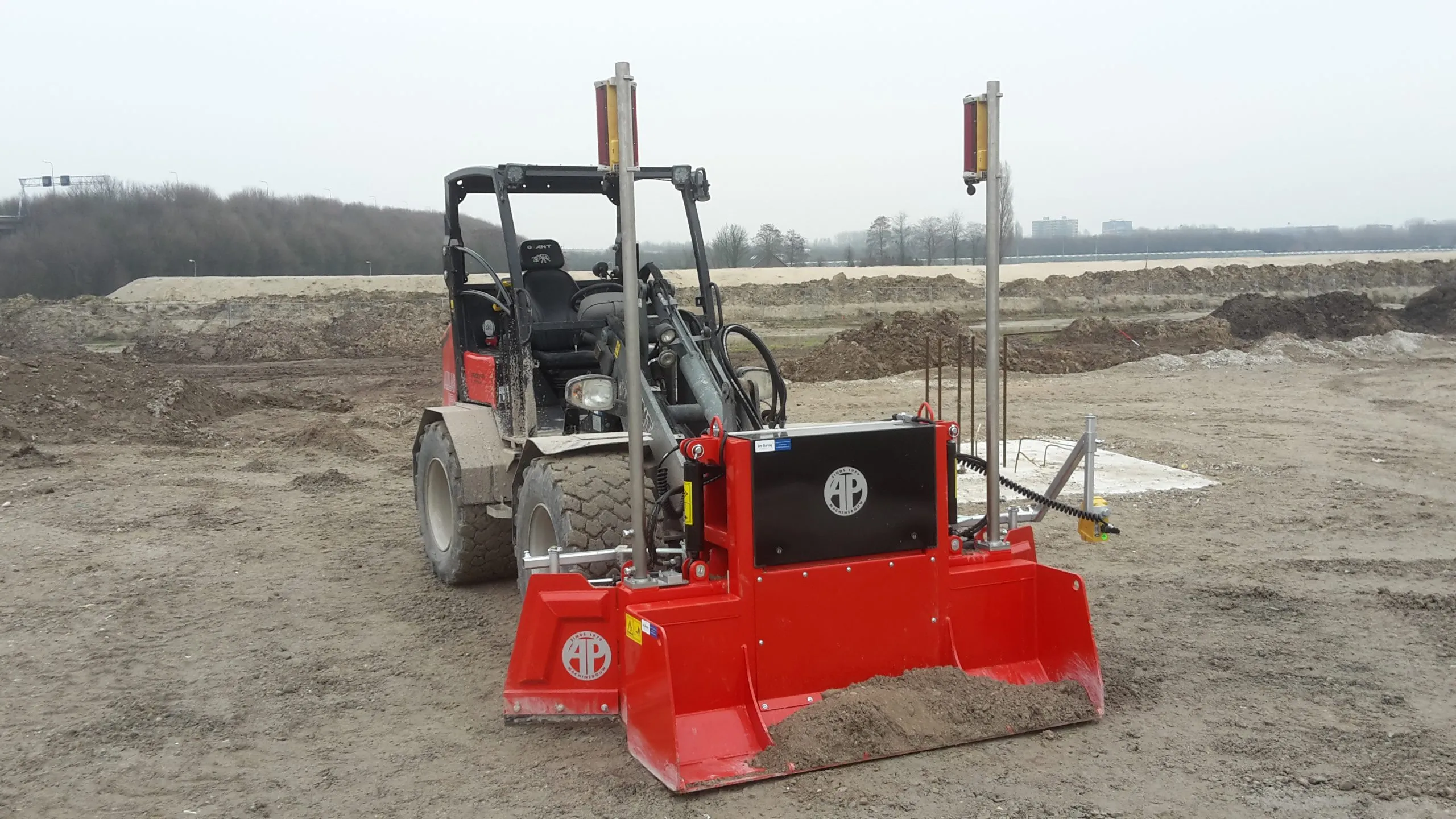

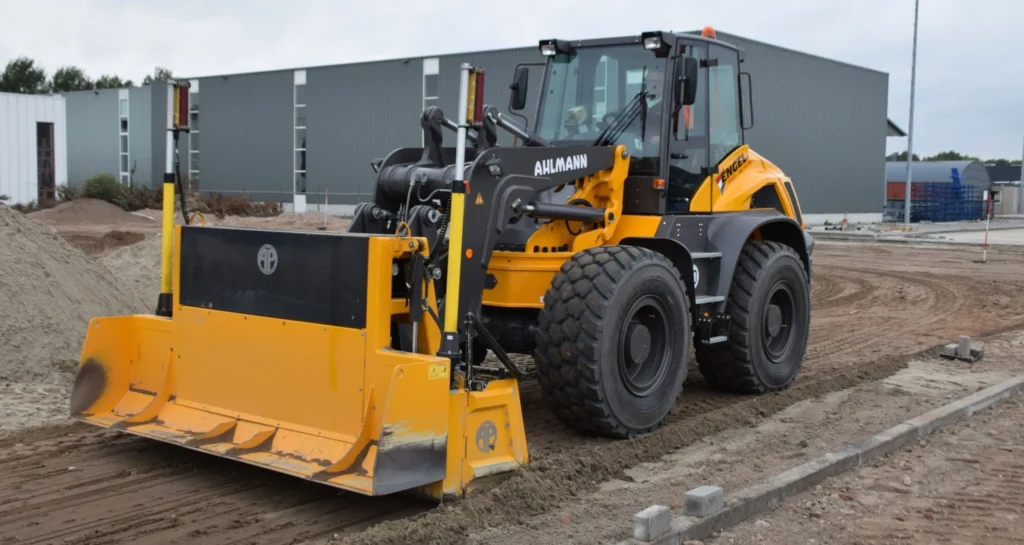

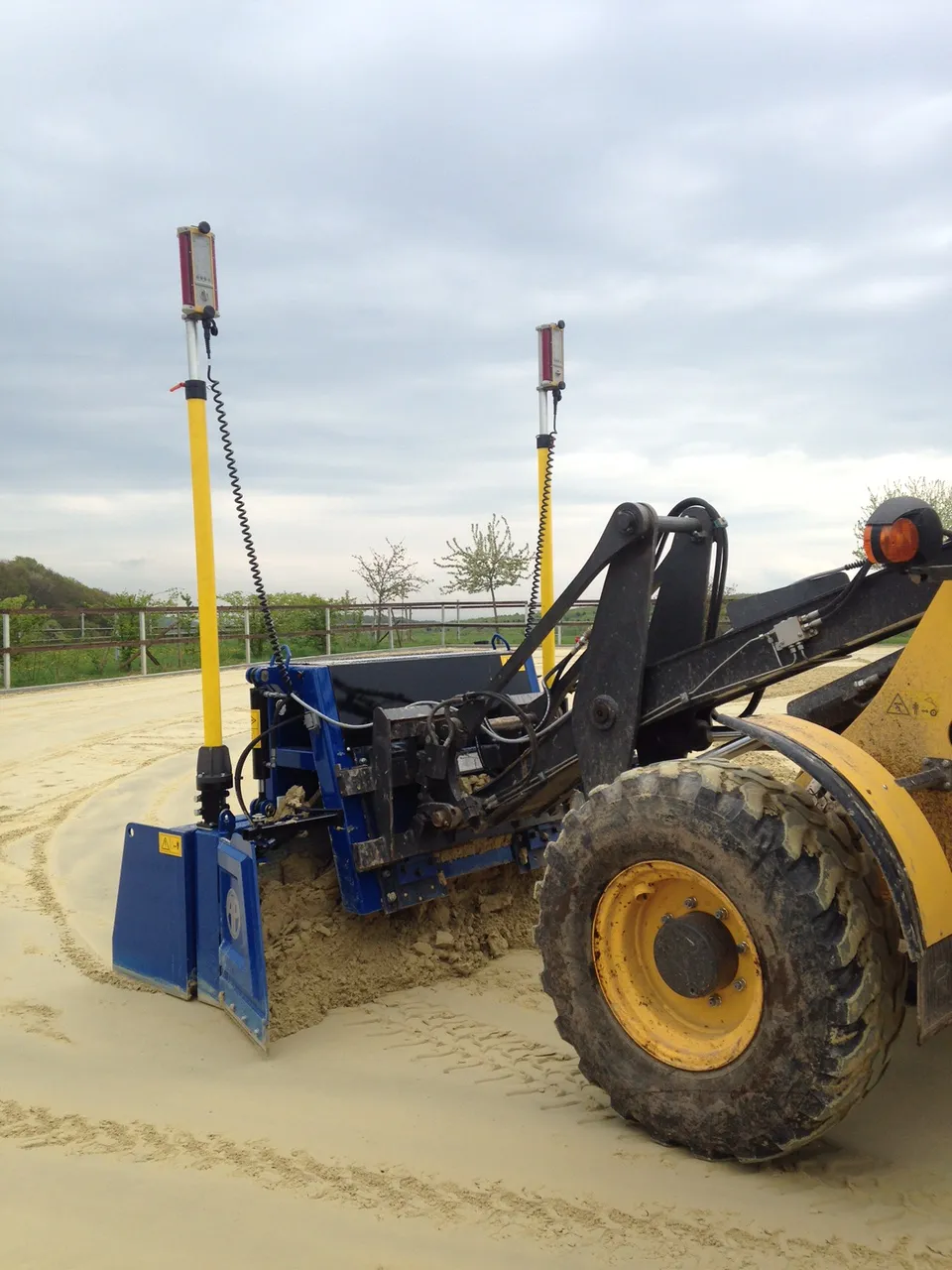

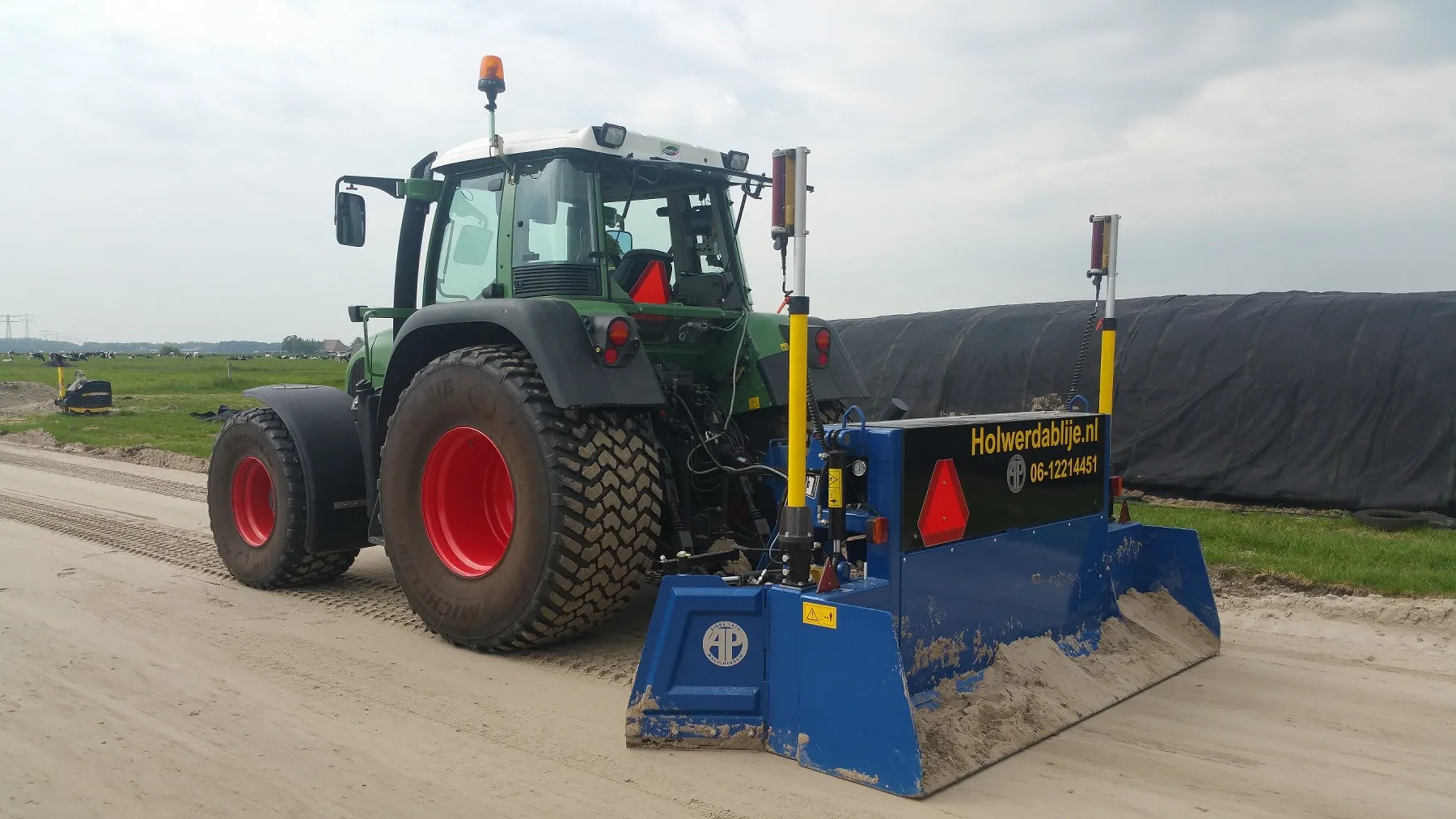

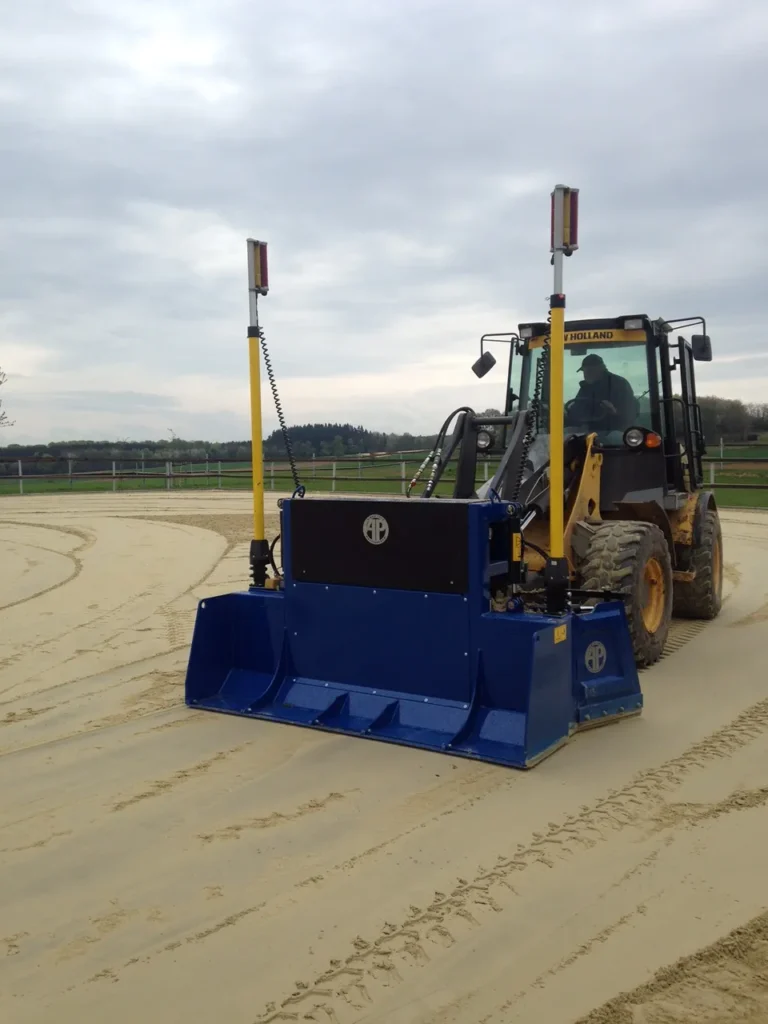

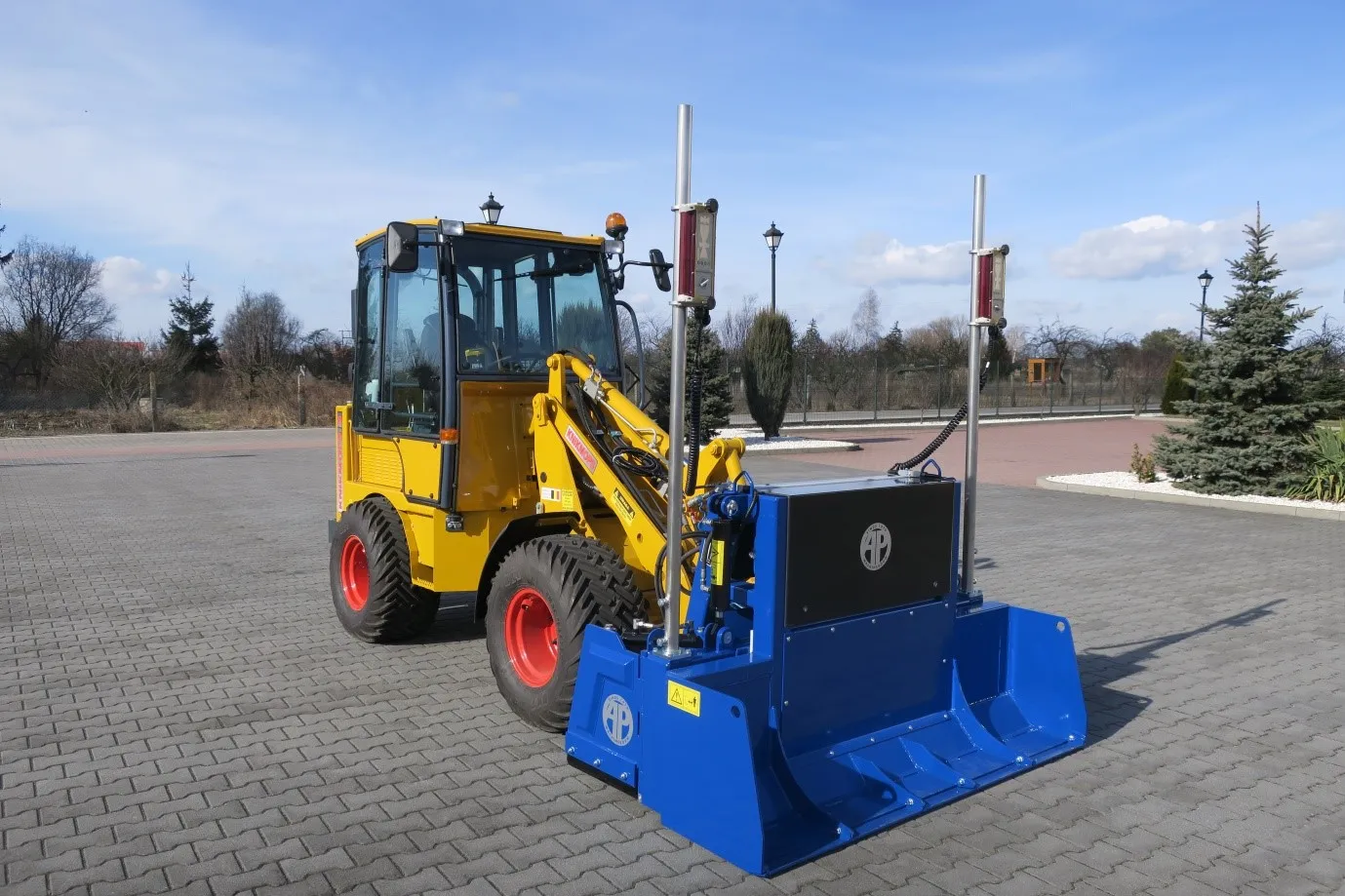

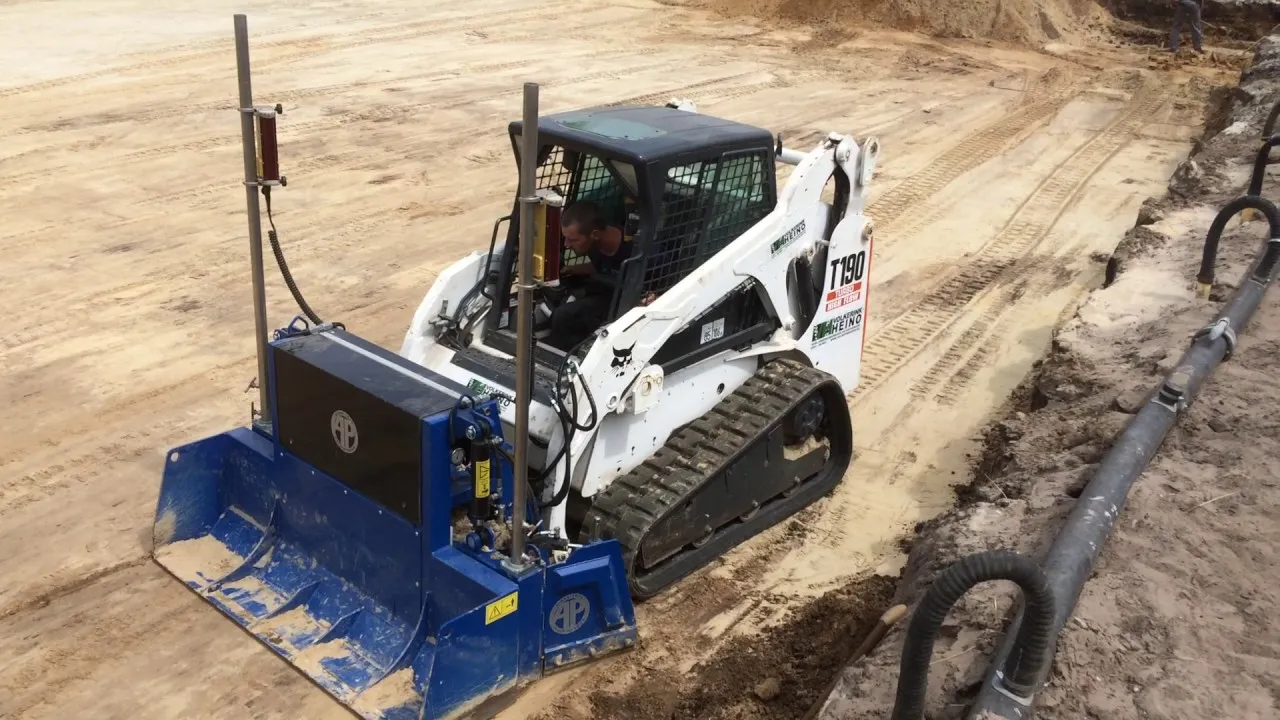

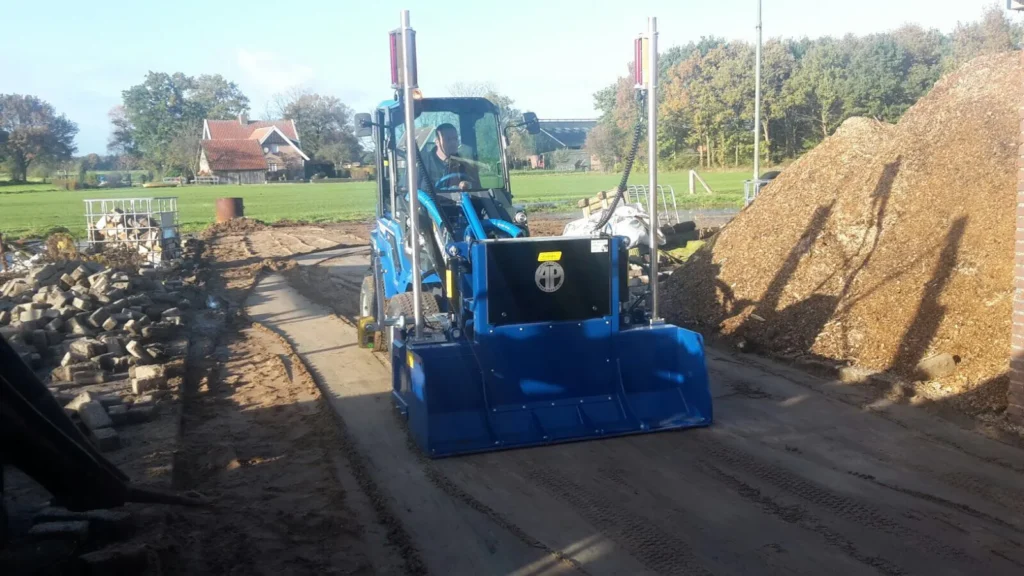

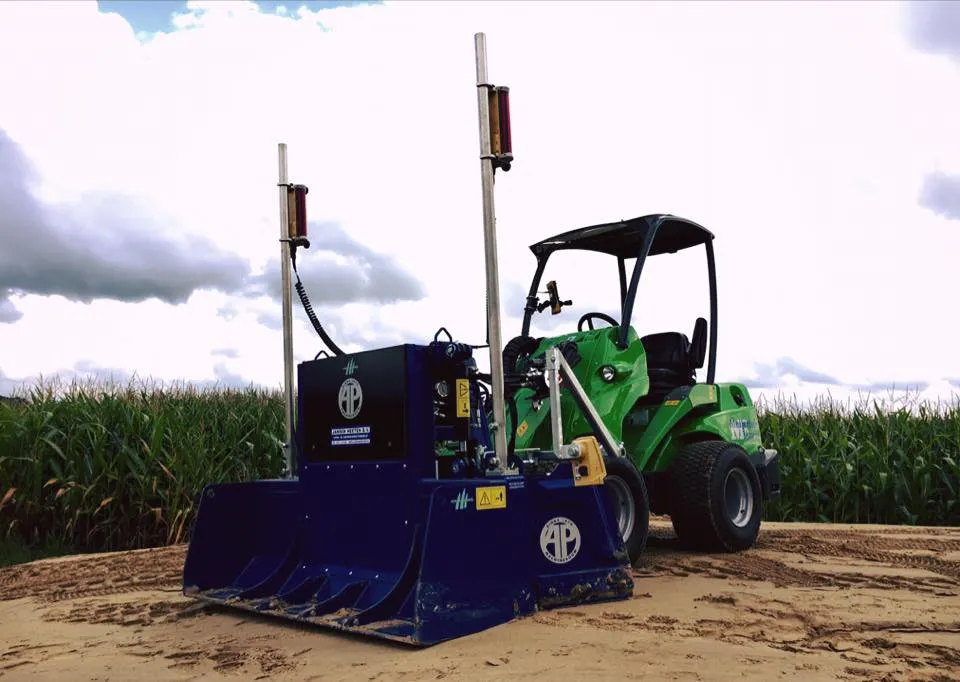

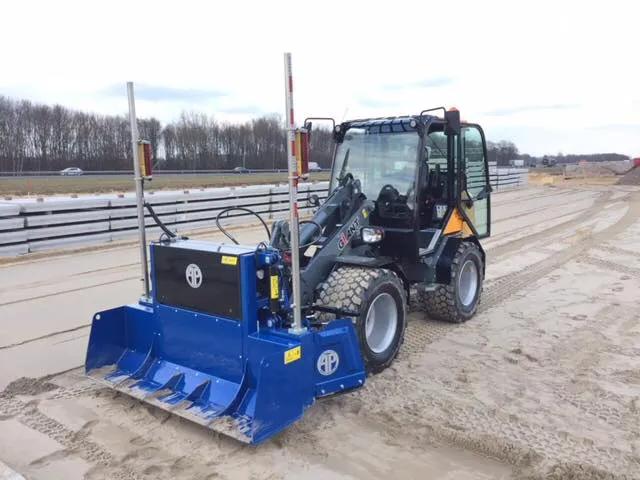

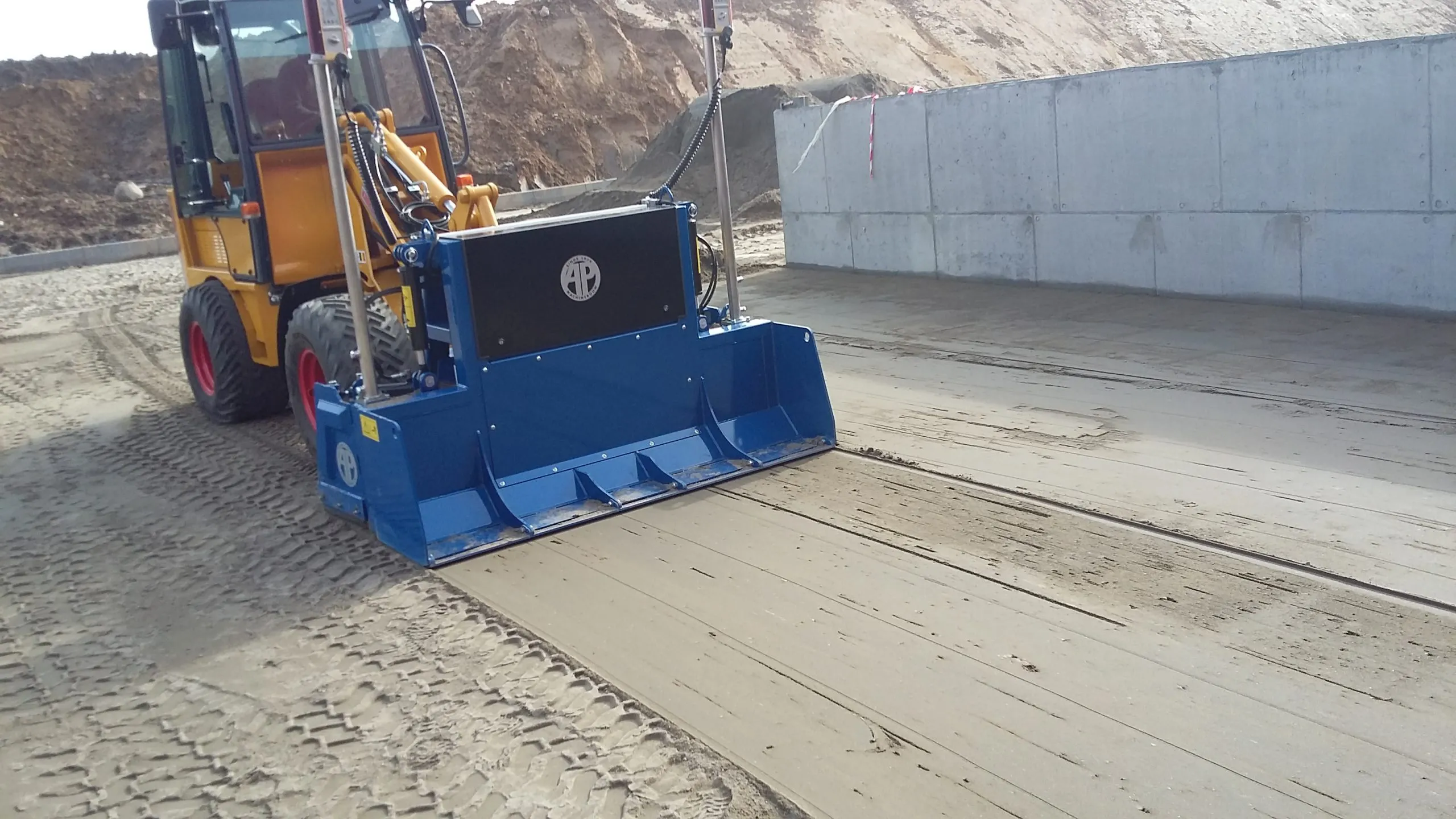

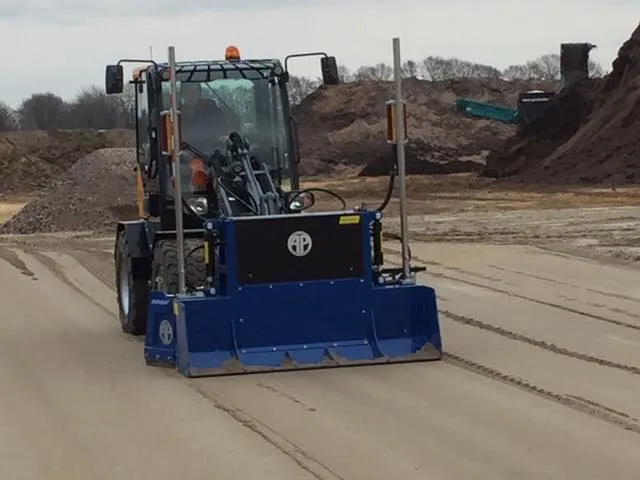

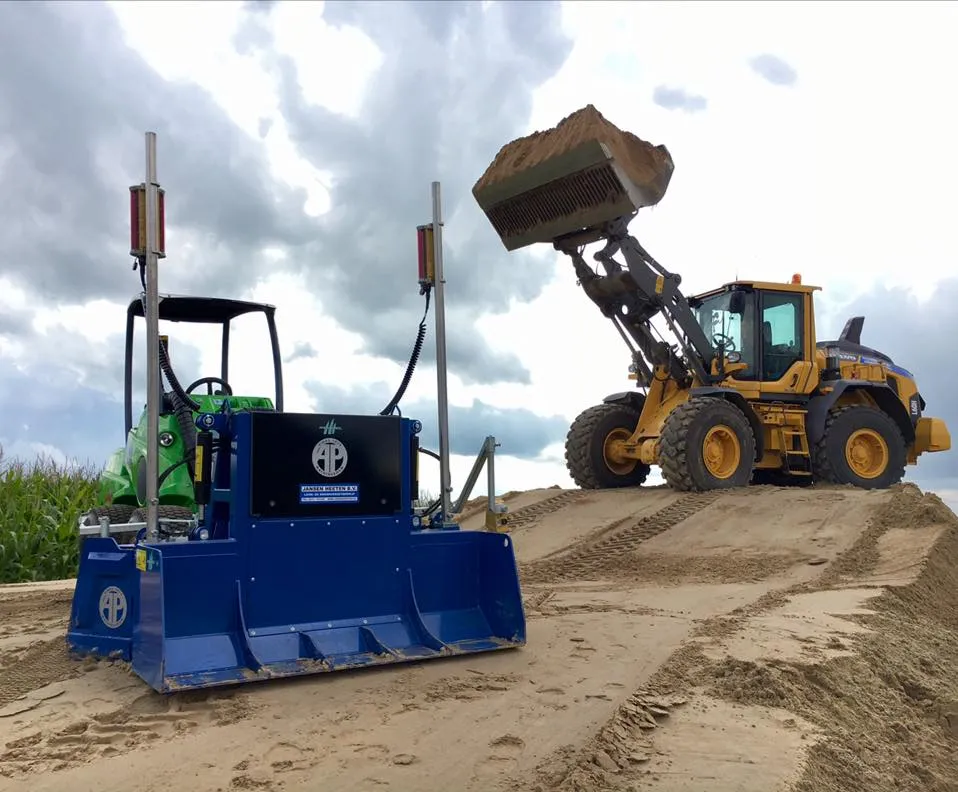

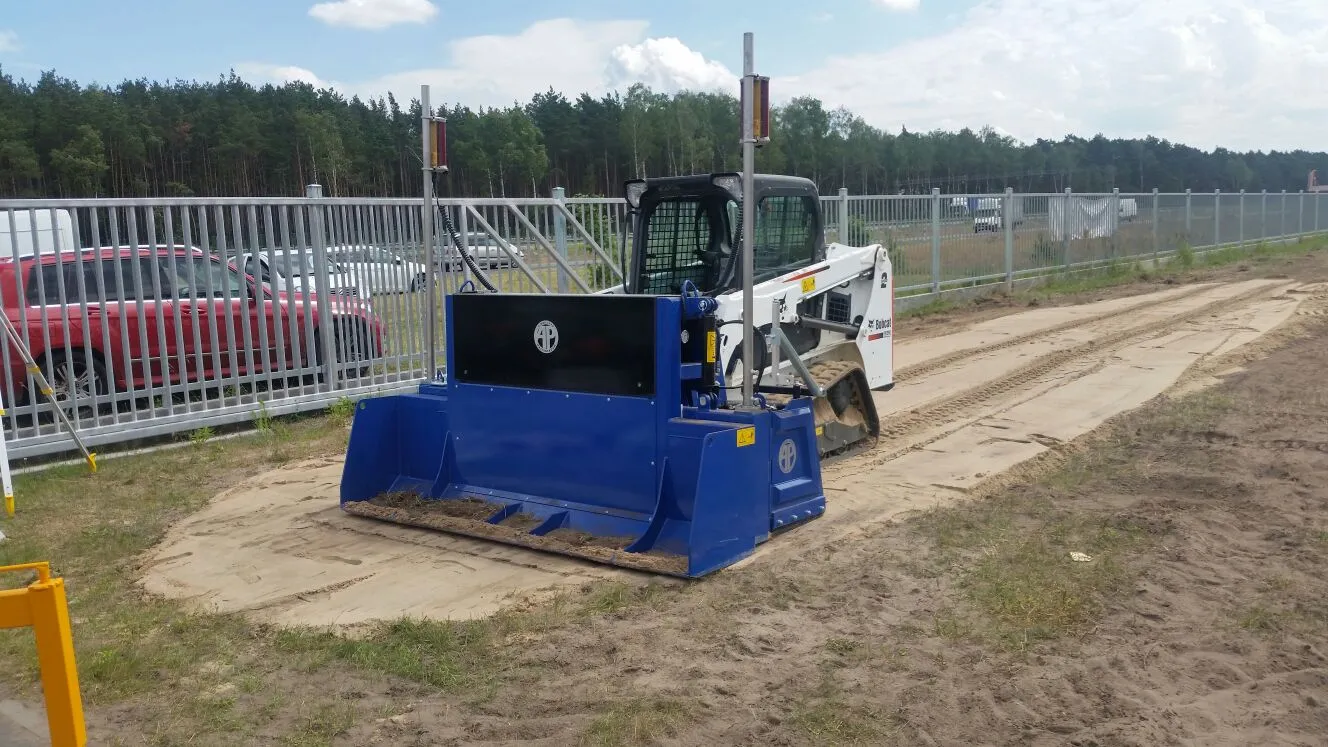

The AP Bullblaster leveller is a leveller with a loading function. The front side is provided with a finishing plate with shovel bucket with which material can be shoveled and compacted. The rear side of the leveller is equipped with a cutting knife to level the material driving backwards.
The AP leveller BullBlaster is used for the levelling of all kinds of materials on roads, parkings, squares etc. and for the levelling of planes under slope(s) for water drainage to the draw-wels. The leveller is suitable for the use with wheel loaders, skids steers or tractors.
The rear side of the leveller is equipped with a cutting knife, the front side is provided with a finishing plate with bucket (for transportation of material). The cutting knife and the finishing plate are controlled separately; during the last pass the front blade can be put in floating position creating an optimal result.
The AP leveller is unique in its genre because the knife gets vertically into the ground immediately when the automatic function is engaged. With the help of the laser the machine directly searches the right level, after which backwards and thus free of tracks can be levelled.

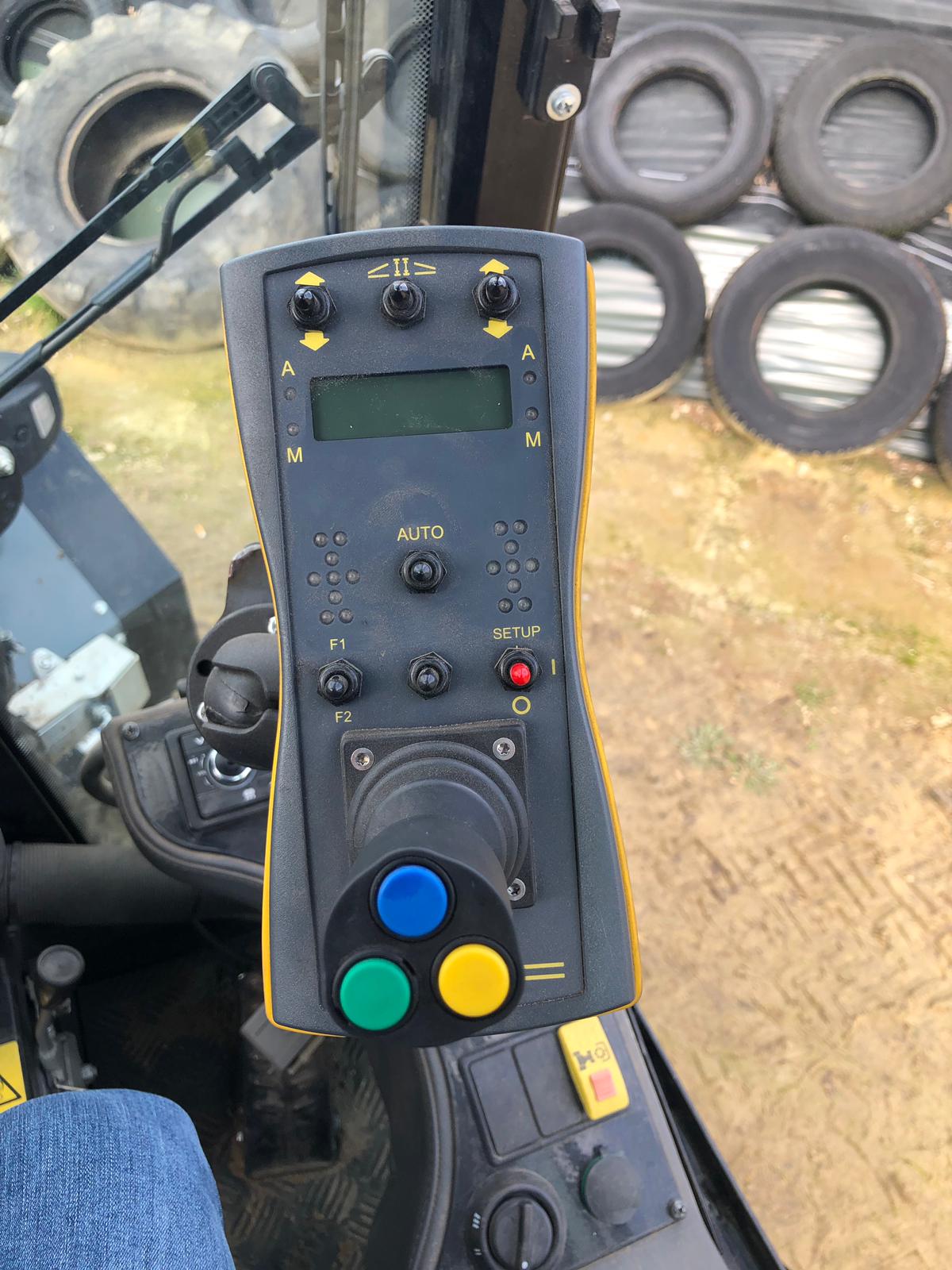

In combination with Topcons LSB-110 machine receivers the BullBlaster can offer true proportional control to 0,5 mm accuracy. No more over- or undershooting when controlling the blade.
√ Power supply 1 x 12V or 24 V / 10 amp.
√ 1 Double functioning hydraulic valve with free return flow
√ Free floating position on wheel loader

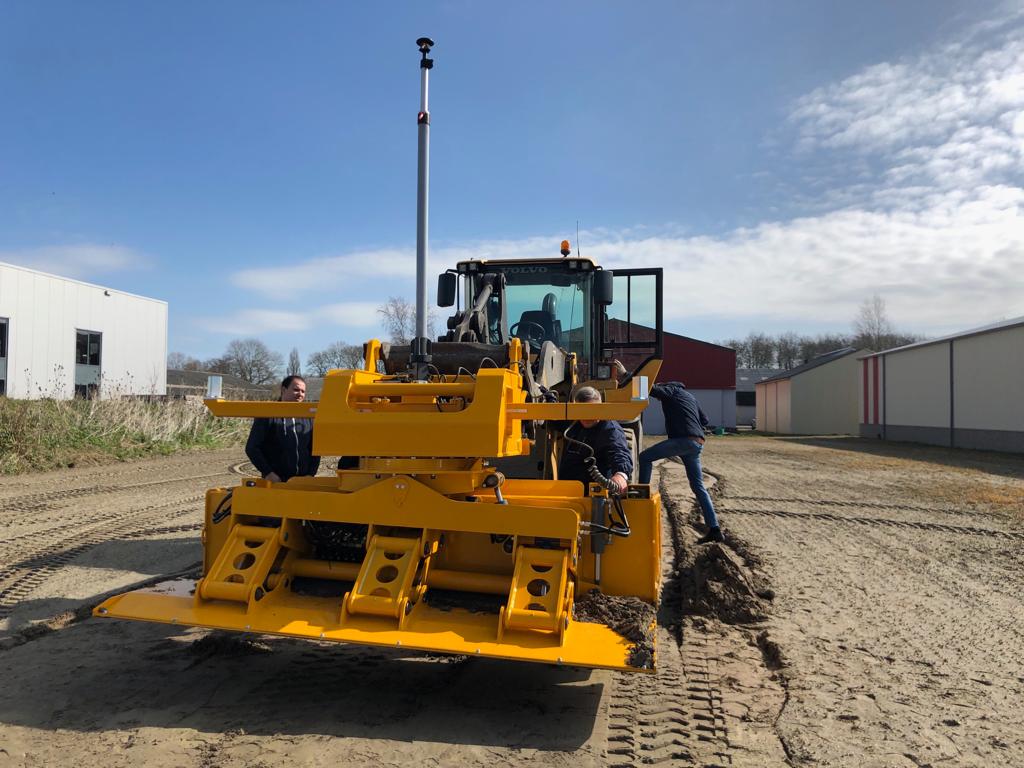

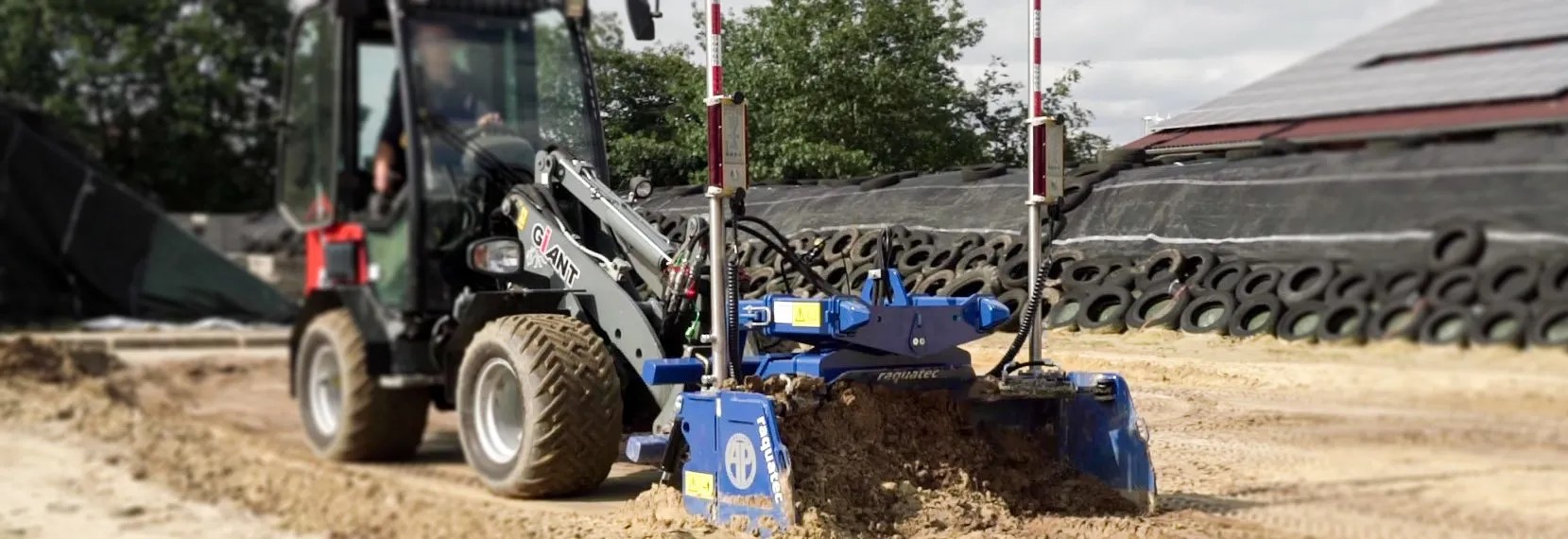

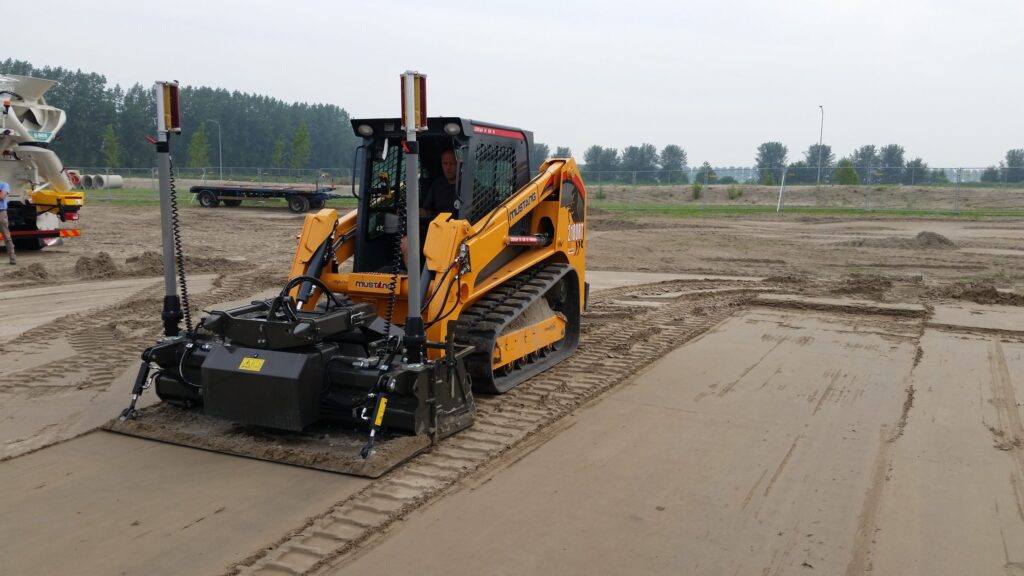

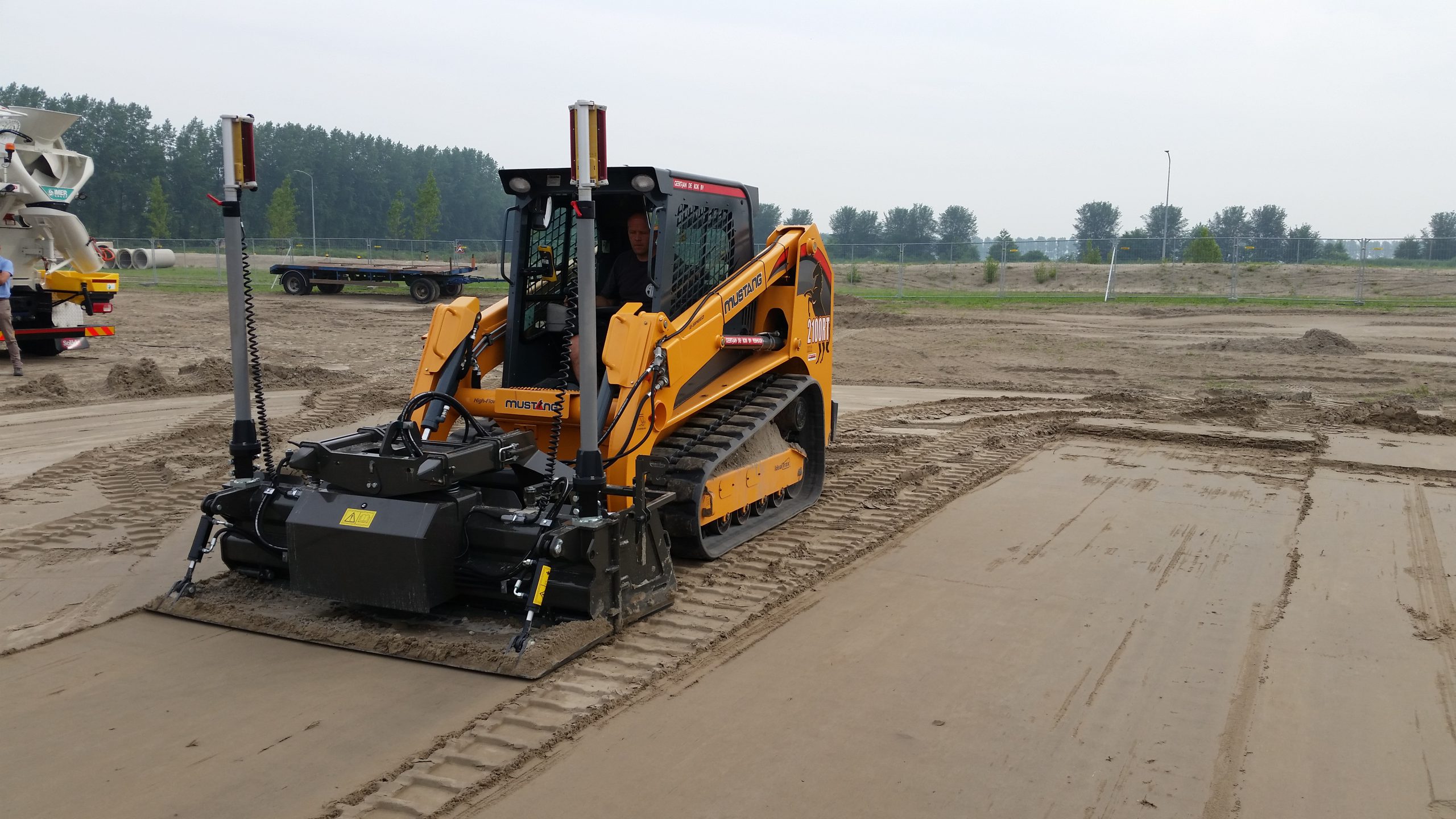

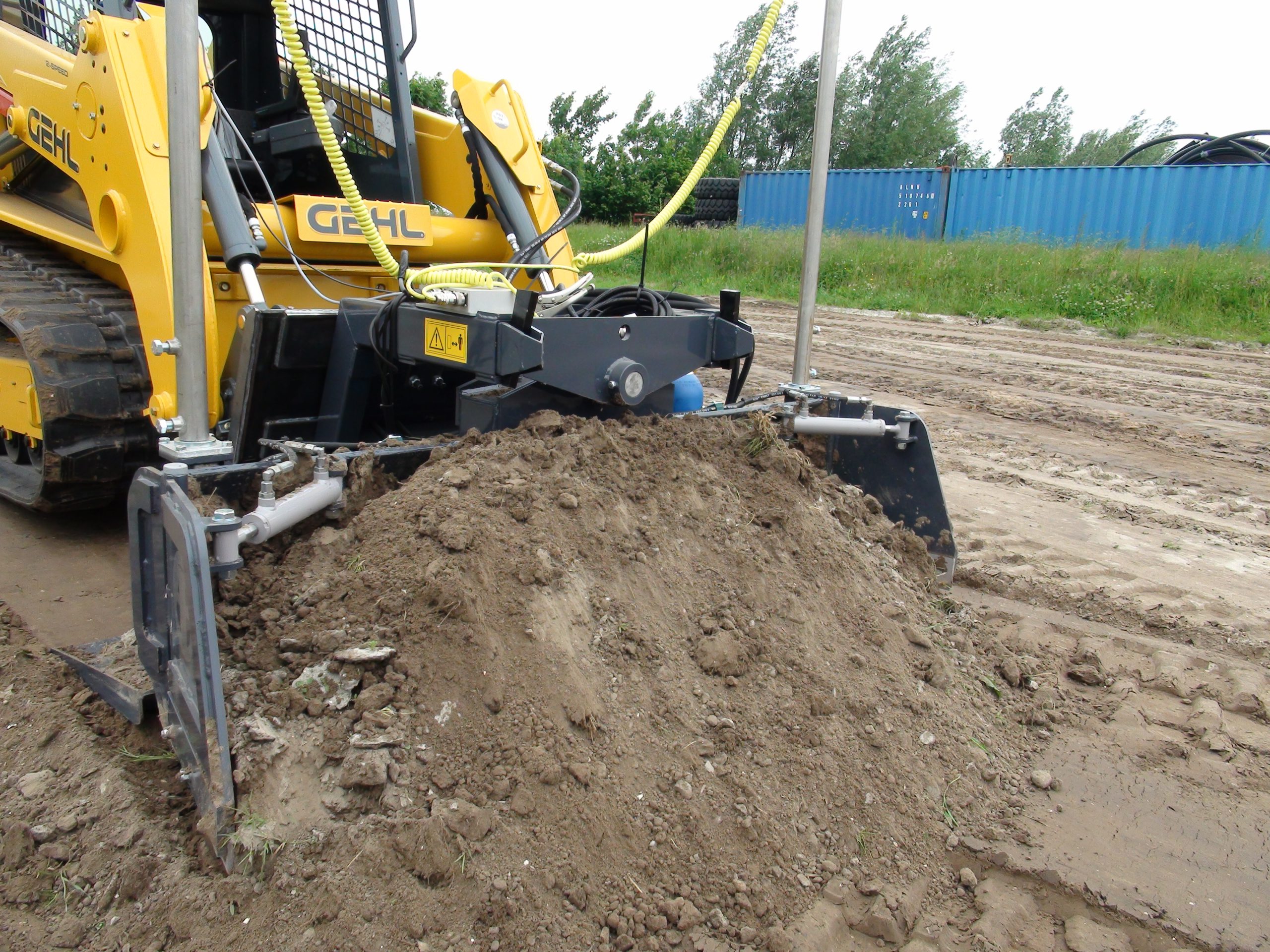

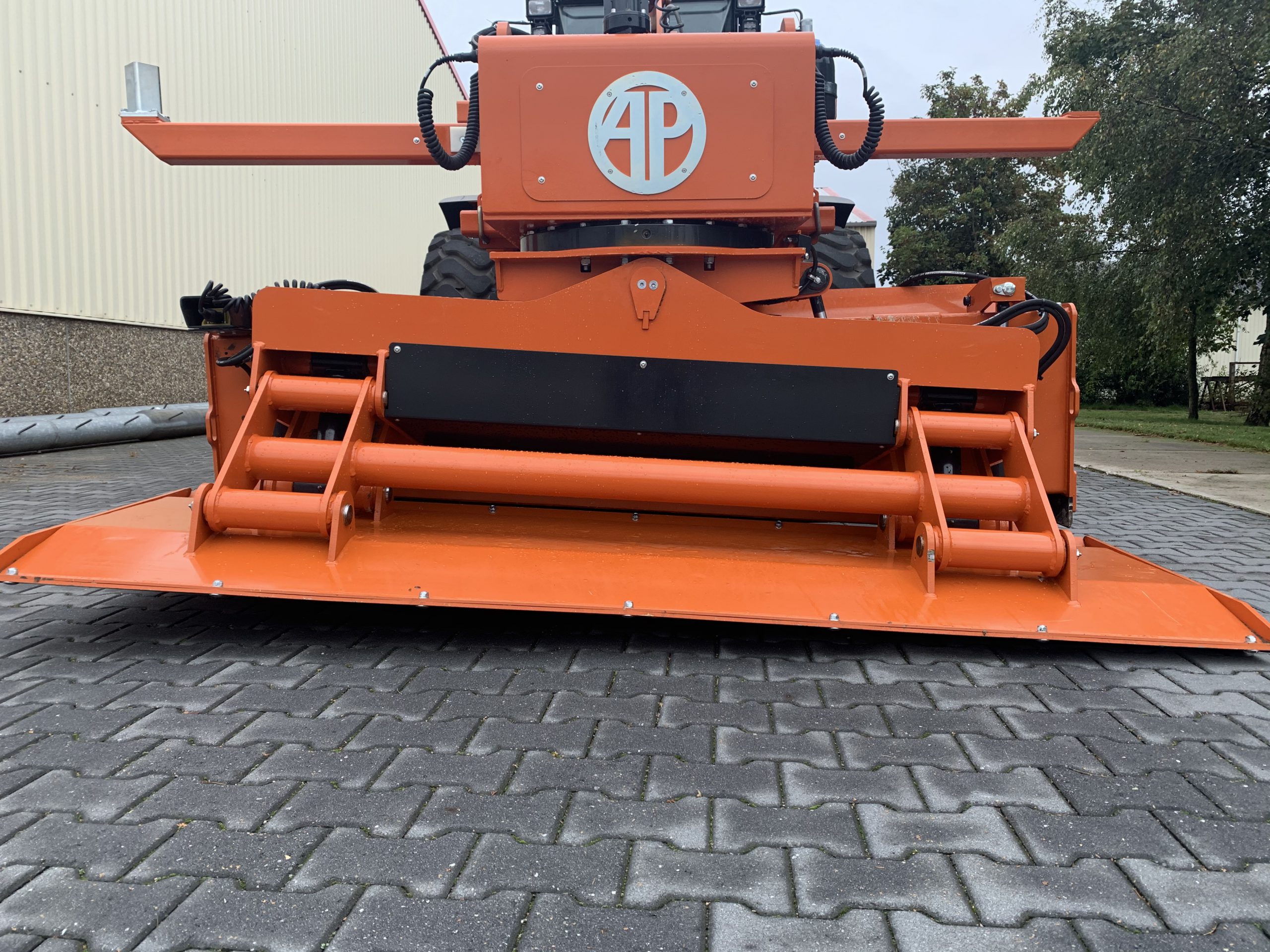

The AP Push Pull leveller is a leveller especially designed for doing 2 jobs with 1 machine. You can build in materials pushing forwards en thereafter you can level your plan driving backewards. It can be coupled on both sides of the wheel / tracked loader.
The AP Push Pull leveller is especially designed for doing 2 jobs with 1 machine. You can build in materials pushing forwards and thereafter you can level your plan driving backwards. It can be coupled on both sides of the wheel / tracked loader. Through a sensor the control knows in which direction you are operating and will automatically change the steering from left to right and vice versa. It is highly accurate in its finish and will deliver the perfect design.

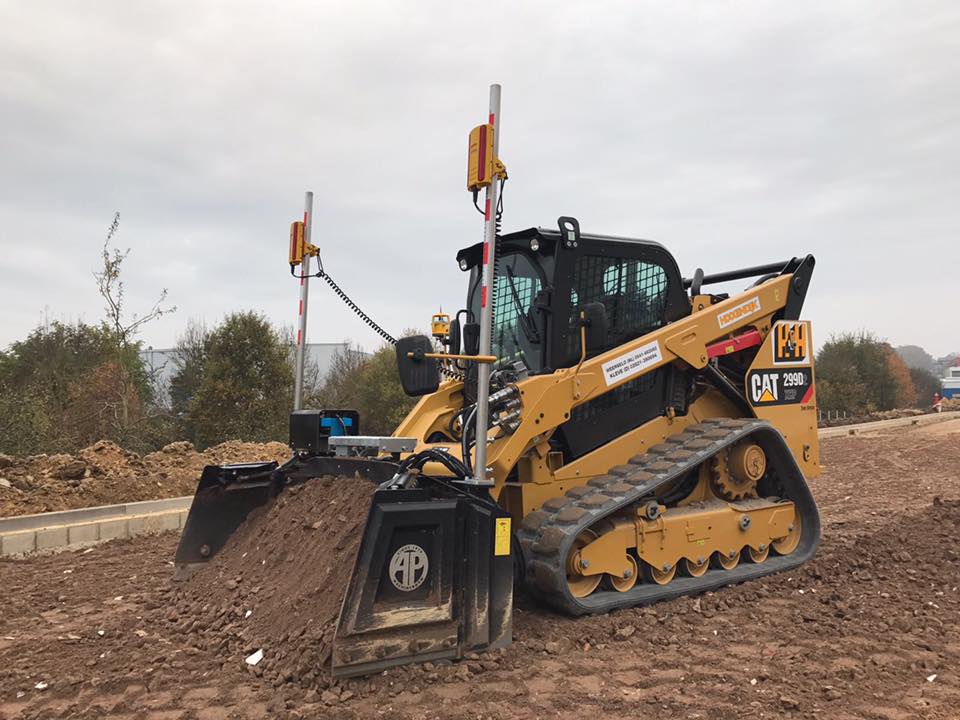

The AP Push Pull leveller is in many ways a combination of the AP Powerblade and the AP BullBlaster leveller, the advantages of this machines have been brought together.

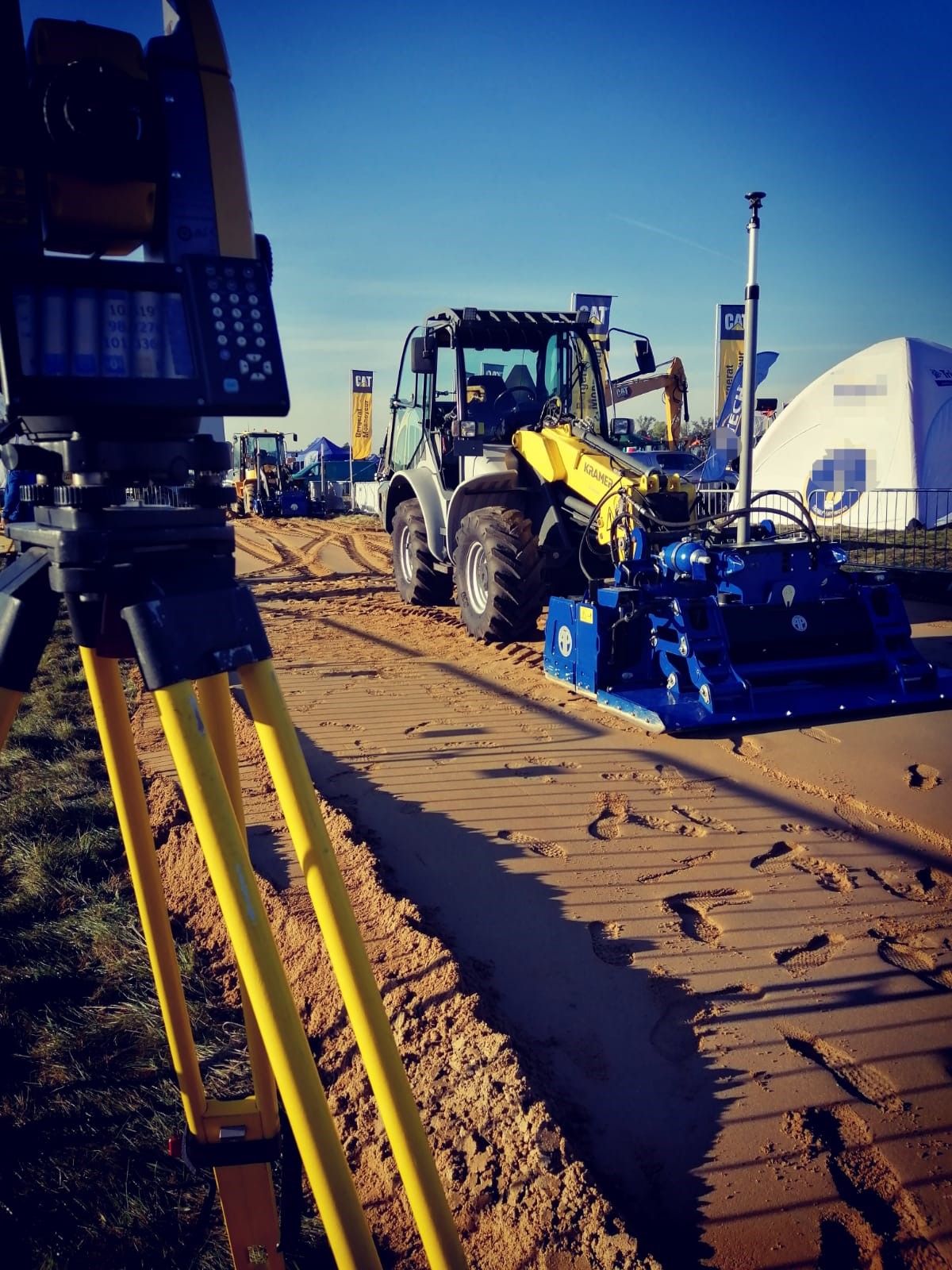

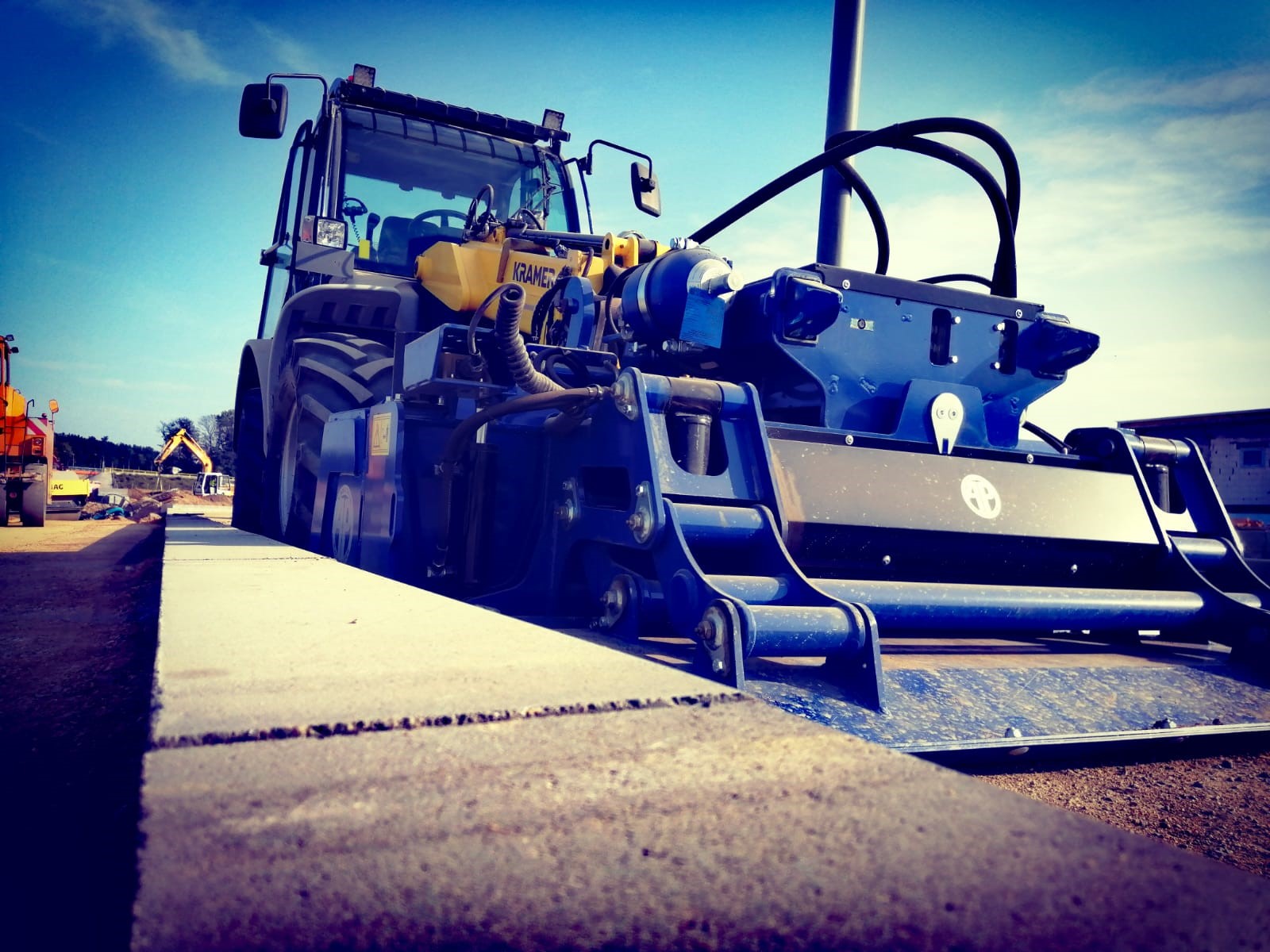

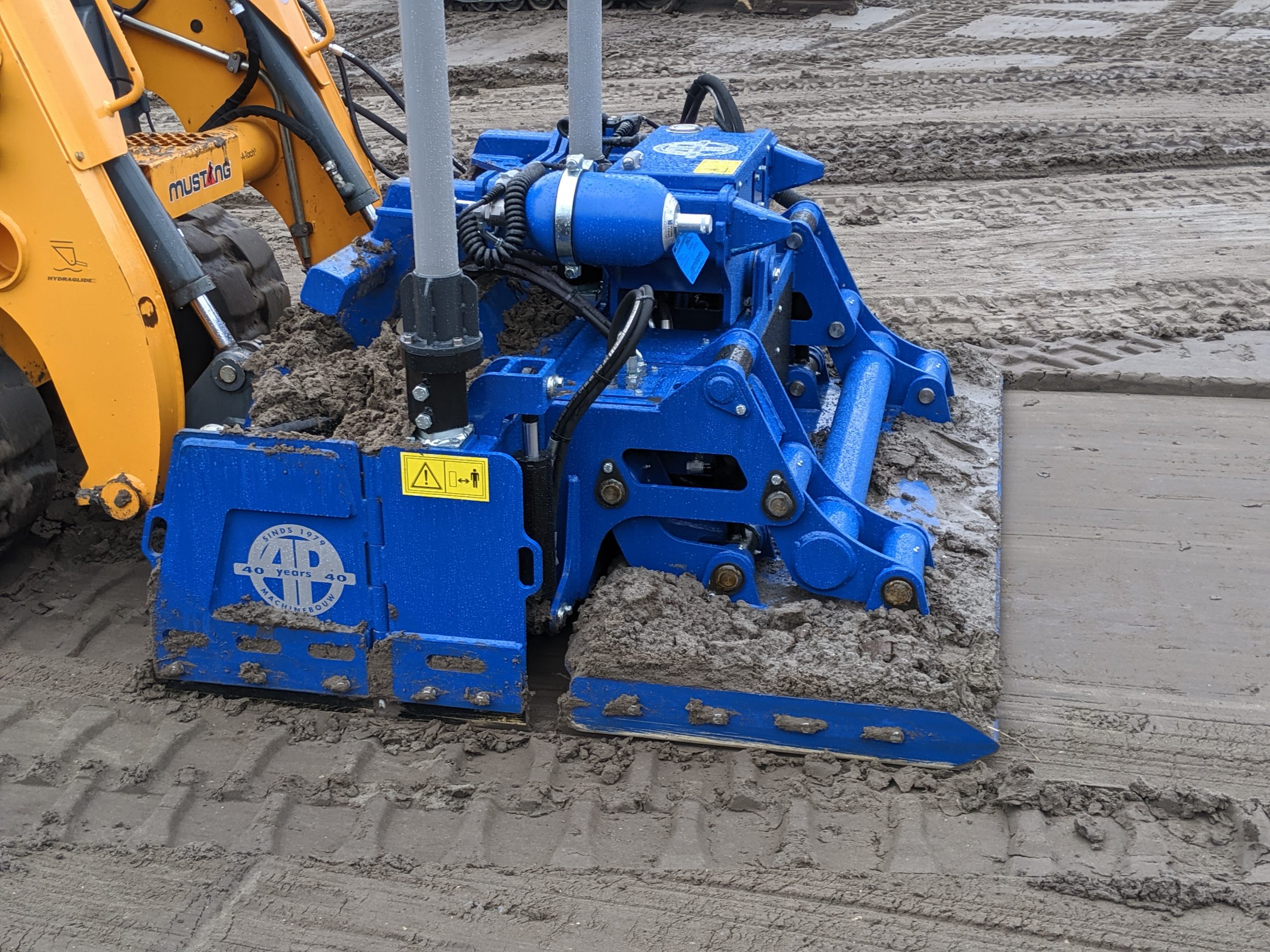

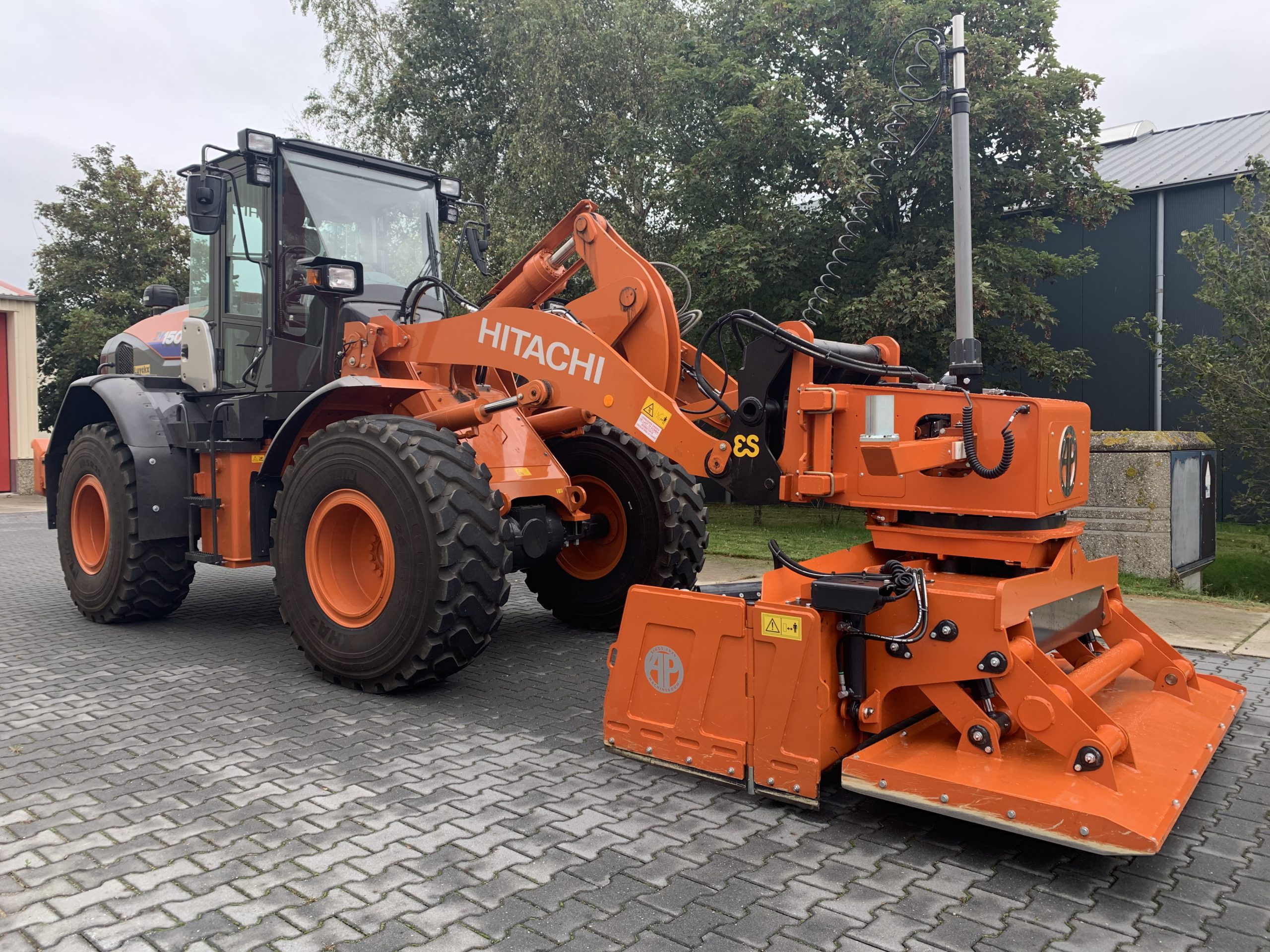

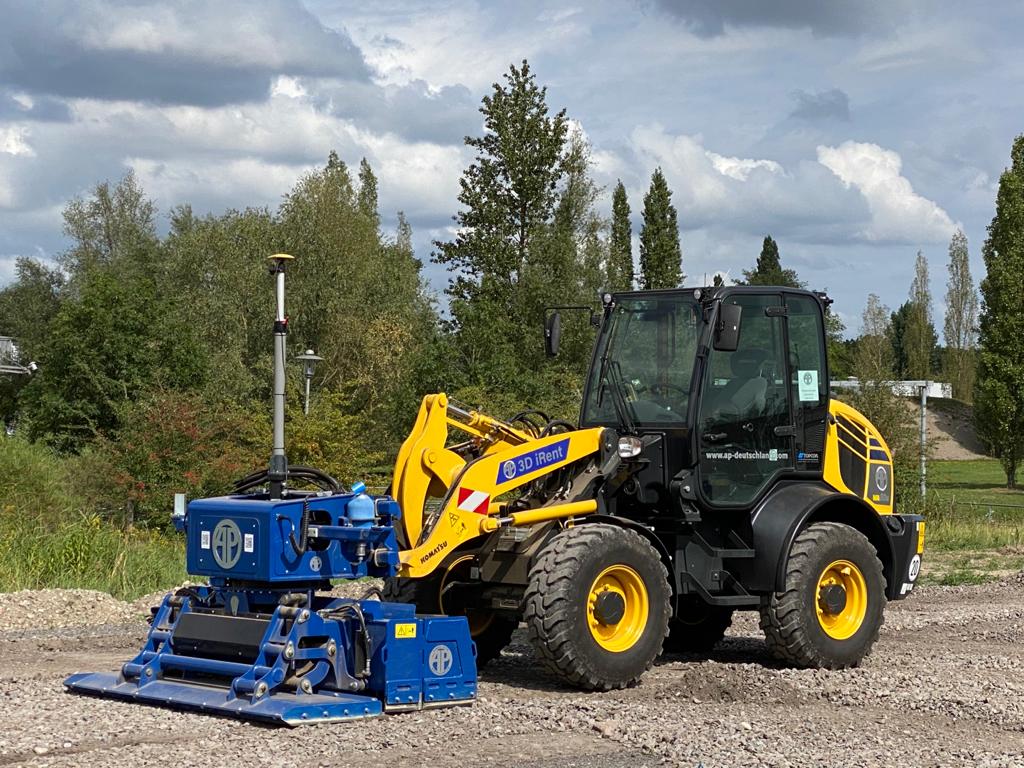

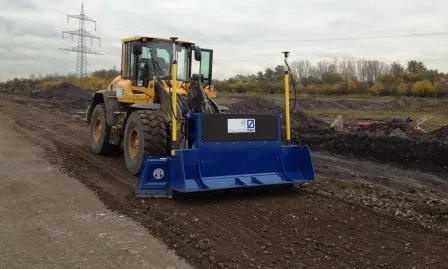

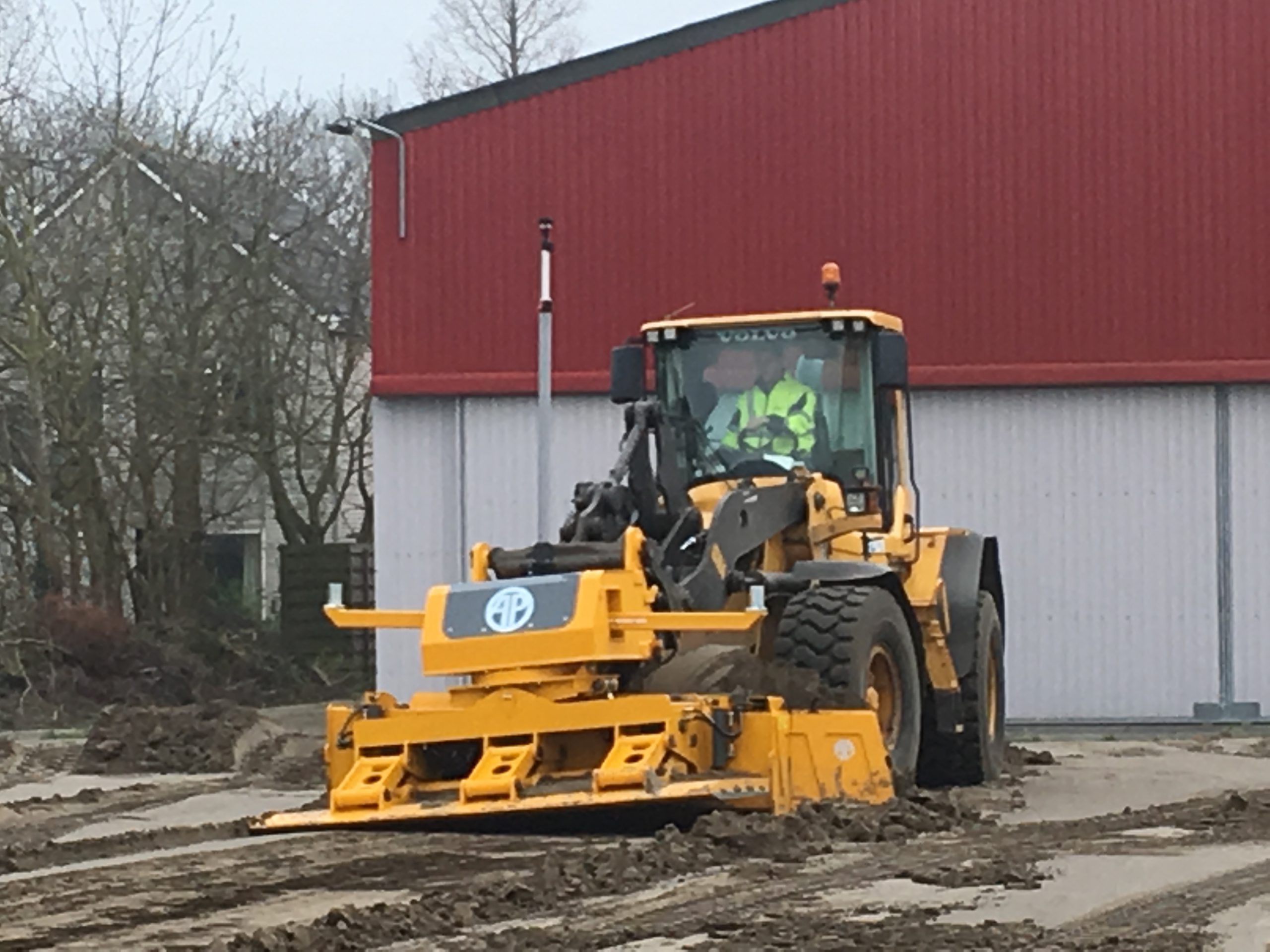

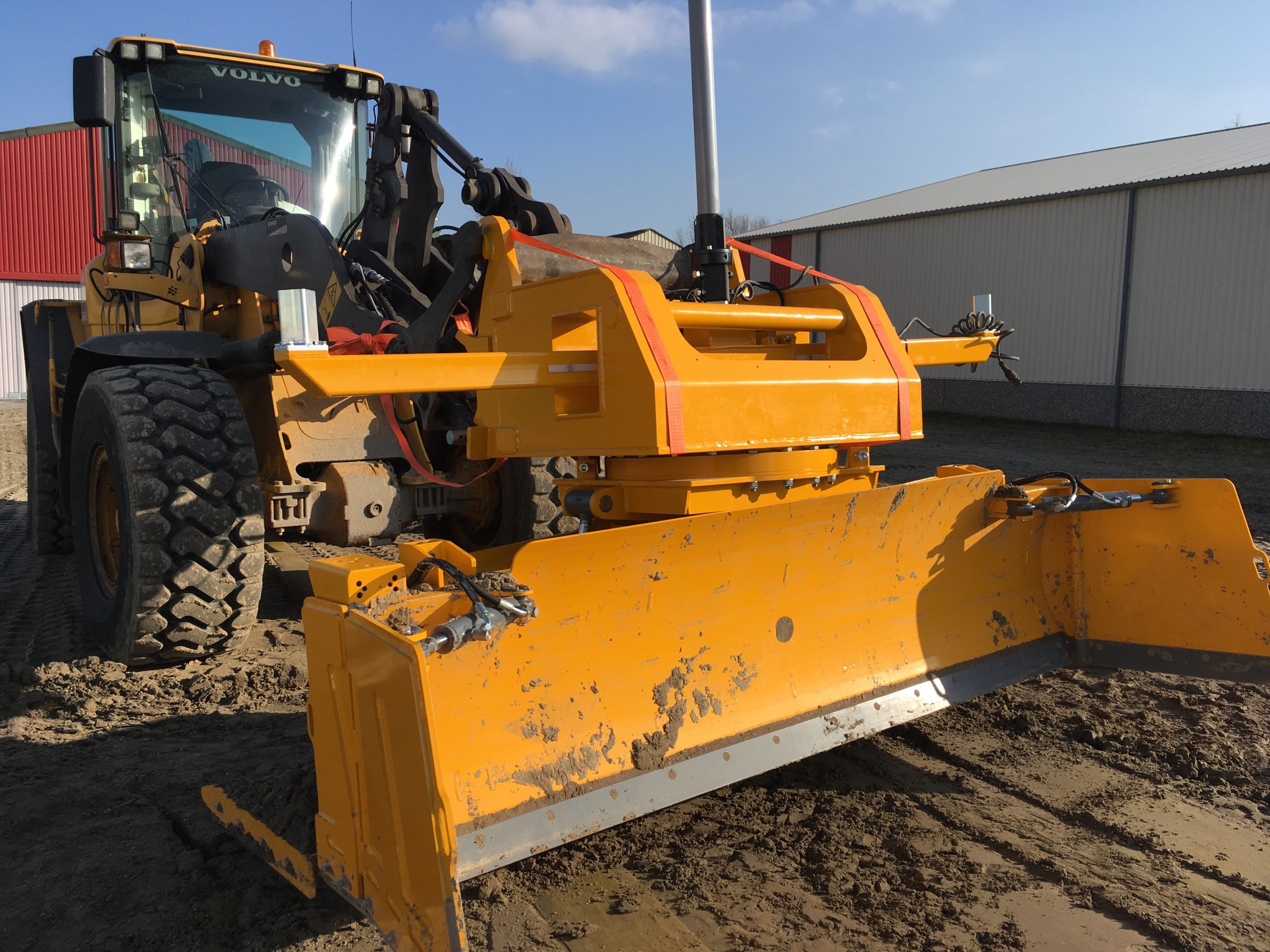

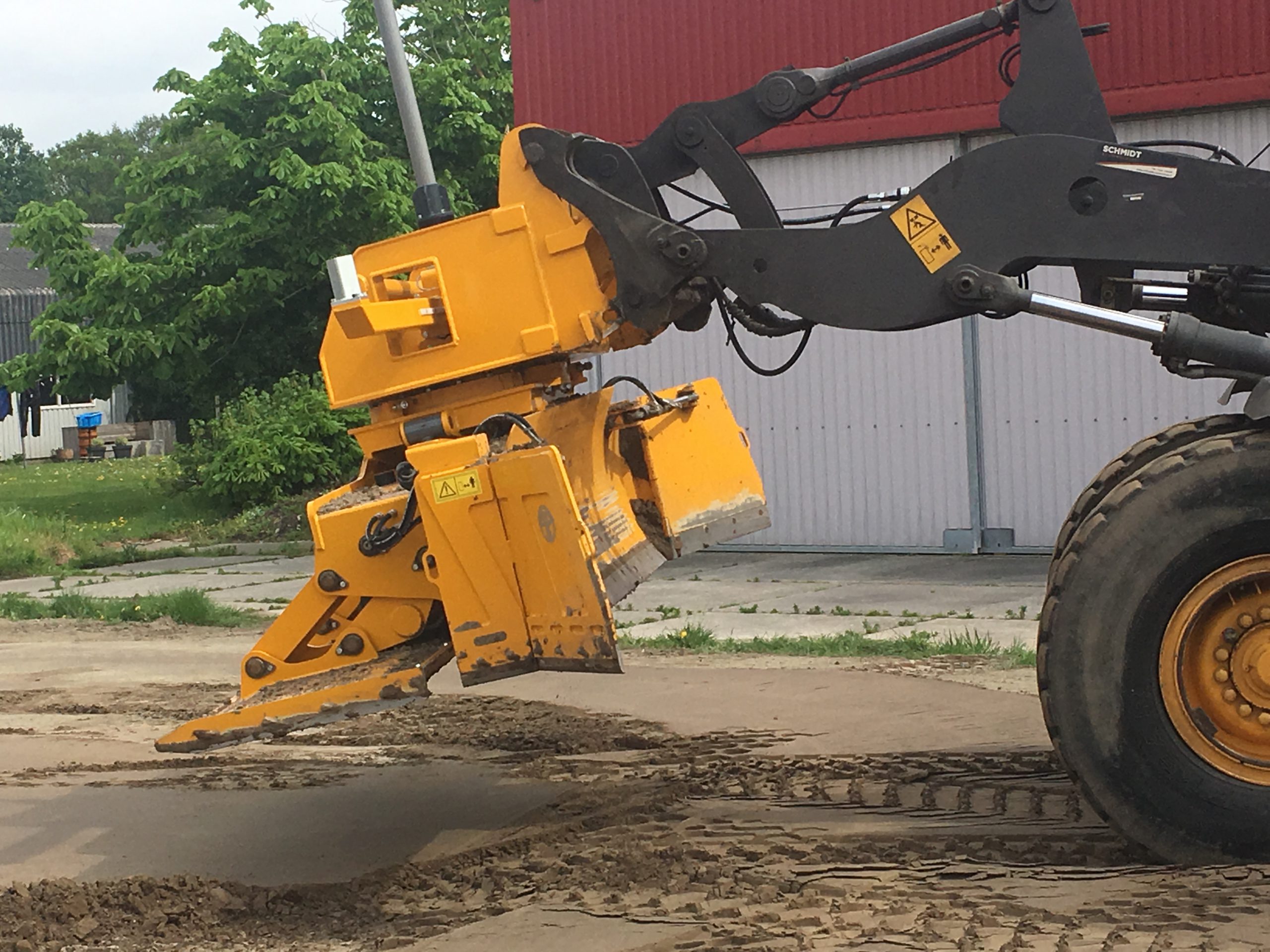

The AP 3D leveller is especially designed for working with 3D control (Total Station or GPS). The blade functions the same way as a dozer blade with a fixed turning point in the middle of the blade. The difference between the 3D leveller and the Push Pull leveller is that the 3D leveller can put the blade at a slope from a fixed turning point and the Push Pull leveller from two independant cylinders.
The AP 3D levellers are especially designed for working with 3D control (Total Station or GPS). The blade functions the same way as a dozer blade with a fixed turning point in the middle of the blade. The height is controlled through a fixed finishing plate (with a changeable wear plate). Furthermore the machine is equipped with an intelligent slope sensor (MC2 sensor) that, if necessary, corrects the leveller at a high reaction speed.
The difference between the 3D leveller and the Push Pull leveller is that the 3D leveller can put the blade at a slope from a fixed turning point and the Push Pull leveller from two independant hydraulic cylinders.
The AP 3D leveller is available in two types :
| Type | Working width cm | Blade height cm | Weight kg |
|---|---|---|---|
| BLE 1400 | 140 | 40 | 330 |
| BLE 1600 | 160 | 40 | 350 |
| BLE 1800 | 180 | 40 | 370 |
| BLE 2000 | 200 | 50 | 390 |
| BLE 2200 | 220 | 50 | 410 |
| Type | Working width cm | Blade height cm | Width with doors open cm | Weight kg |
|---|---|---|---|---|
| M-LEV 1200 | 120 | 40 | 163 | 410 |
| M-LEV 1400 | 140 | 40 | 183 | 425 |
| LEV 1200 | 120 | 52 | 196 | 475 |
| LEV 1400 | 140 | 52 | 216 | 525 |
| LEV 1600 | 160 | 52 | 236 | 590 |
| LEV 1800 | 180 | 52 | 256 | 640 |
| LEV 2000 | 200 | 65 | 293 | 920 |
| LEV 2200 | 220 | 65 | 313 | 980 |
| LEV 2450 | 245 | 65 | 333 | 1040 |
| LEV 2650 | 265 | 65 | 353 | 1080 |
| LEV 2850 | 285 | 65 | 373 | 1150 |
| Type | Working width cm | Working width with doors open cm | Blade height cm | Weight kg |
|---|---|---|---|---|
| PP 1400 | 140 | 220 | 52 | 650 |
| PP 1600 | 160 | 240 | 52 | 675 |
| PP 1800 | 180 | 260 | 52 | 700 |
| PP 2000 | 200 | 280 | 52 | 740 |
| PP 2200 | 220 | 300 | 52 | 775 |
| PP 2450 | 245 | 335 | 65 | 850 |
| PP 2650 | 265 | 355 | 65 | 900 |
| Type | Blade height cm | Working width cm | Working width with doors open cm | Weight kg (depending on options) |
|---|---|---|---|---|
| 3D-LEV 2000 TT | 60 | 200 | 270 | 1600 |
| 3D-LEV 2200 TT | 60 | 220 | 290 | 1700 |
| 3D-LEV 2450 TT | 60 | 245 | 315 | 1825 |
| 3D-LEV 2650 TT | 78 | 265 | 371,5 | 2525 |
| 3D-LEV 2850 TT | 78 | 285 | 391,5 | 2700 |
| Type | Blade height cm | Working width cm | Working width with doors open cm | Weight kg (depending on options) |
|---|---|---|---|---|
| 3D-LEV 2000 PP | 60 | 200 | 270 | 1200 |
| 3D-LEV 2200 PP | 60 | 220 | 290 | 1300 |
| 3D-LEV 2450 PP | 60 | 245 | 315 | 1425 |
| 3D-LEV 2650 PP | 78 | 265 | 371,5 | 2150 |
| 3D-LEV 2850 PP | 78 | 285 | 391,5 | 2350 |
